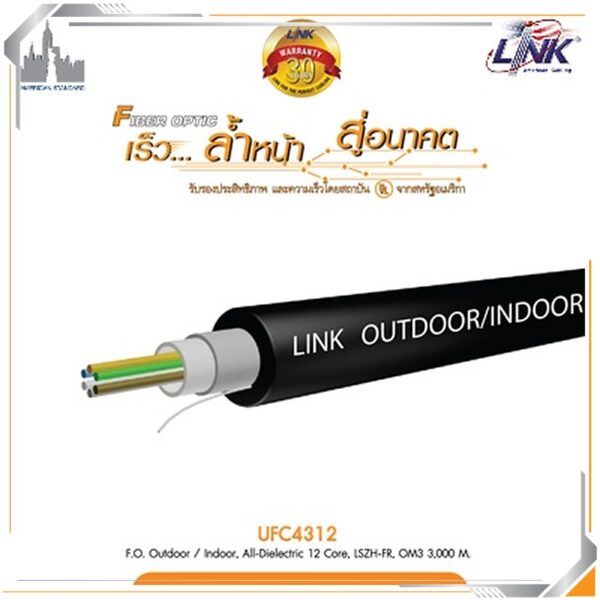

Specifications LINK UFC4312
| Features | Description |
|---|---|
| Device Type | Outdoor/Indoor All-Dielectric Fiber Optic Cable |
| Fiber Type | OM3 XG Multimode 50/125 μm |
| Core Count | 12 Core |
| Cable Construction | Single Loose Tube, All-Dielectric |
| Water Blocking | Waterproof Gel Filled Tube with Water Blocking E-Glass Yarn |
| Strength Member | Water Blocking E-Glass Yarn (Non-Metallic) |
| Outer Jacket | UV-Resistant FR-LSZH (Low Smoke Zero Halogen) |
| Jacket Color | Black |
| Cable Length | 4,000 Meters / Drum |
| Application | Campus Backbone, Building Backbone, Indoor/Outdoor Duct, Lash Aerial, Data Center, FTTx, CATV, CCTV and Enterprise Networks |
| Cable Standard | ANSI/TIA-568.3-D, ISO/IEC 11801:2017 |
|---|---|
| Fiber Standard | ITU-T G.651.1 OM3 Multimode |
| Core Size | 50/125 μm |
| Number of Fibers | 12 Core |
| Fiber Construction | Single Loose Tube with Waterproof Gel Filling |
| Strength Member | Water Blocking E-Glass Yarn |
| Rip Cord | Included |
| Outer Jacket | UV-Resistant FR-LSZH |
| Cable Diameter | Approximately 7.2 ± 0.5 mm |
| Cable Weight | Approximately 53 ± 5 kg/km |
| SMART FEATURES | |
|---|---|
| All-Dielectric Design | Non-Metallic Construction Eliminates Electrical Conductivity and Grounding Requirements |
| OM3 XG Multimode Fiber | Optimized for High-Speed VCSEL Laser Transmission in Enterprise Networks and Data Centers |
| Water Blocking Protection | Gel-Filled Loose Tube and E-Glass Yarn Prevent Moisture Penetration and Improve Outdoor Reliability |
| LSZH Flame Retardant Jacket | Provides Low Smoke and Zero Halogen Performance for Safer Indoor Installations |
| High-Speed Optical Transmission | Supports 10G, 40G and 100G Ethernet, Fiber Channel, FTTx, CATV and CCTV Applications |
| GENERAL | |
|---|---|
| Cable Type | Outdoor/Indoor All-Dielectric Single Loose Tube Fiber Optic Cable |
| Maximum Tensile Load | 1,800 N (Installation) / 900 N (Operation) |
| Maximum Crush Resistance | 1,500 N / 10 cm |
| Minimum Bend Radius | 15 × Cable Diameter (Installation), 10 × Cable Diameter (Operation) |
| Installation / Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Standards Compliance | ANSI/TIA-568.3-D, ANSI/TIA-568-C.3, ANSI/ICEA 696, ANSI/ICEA 596, ISO/IEC 11801:2017, IEC 60793, IEC 60794-1-2, IEC 60332-1-2, IEC 61034-2, IEC 60754-2, Telcordia GR-20-CORE, GR-409-CORE, ITU-T G.651.1, TIS 2165, RoHS |
| Packaging | 4,000m Drum |
| Warranty | 30 Years |
Note: The LINK UFC4312 is a 12-core OM3 XG 50/125 μm multimode fiber optic cable designed for indoor and outdoor installations. It features an all-dielectric construction, gel-filled single loose tube, water-blocking E-glass yarn, and a UV-resistant FR-LSZH outer jacket to provide reliable optical transmission while protecting against moisture, UV exposure, and harsh environmental conditions.
Important: The LINK UFC4312 is optimized for VCSEL laser transmission and supports IEEE 802.3 Gigabit Ethernet, IEEE 802.3ae 10 Gigabit Ethernet, 40G and 100G Ethernet, Fiber Channel, FTTx, CATV, CCTV, and campus backbone networks. Its all-dielectric design eliminates grounding requirements and provides complete immunity to electromagnetic interference, making it ideal for duct and aerial backbone installations between buildings and in data center environments.
