Specifications LINK UFC5312A
| Features | Description |
|---|---|
| Device Type | Outdoor/Indoor Armored Fiber Optic Cable |
| Fiber Type | OM2 Multimode 50/125 μm |
| Core Count | 12 Core (Single-Tube) |
| Cable Construction | Single-Tube, Corrugated Steel Tape Armored |
| Water Blocking | Waterproof Compound Filled Loose Tube with Water Blocking E-Glass Yarn |
| Strength Member | Water Blocking E-Glass Yarn Tensile Strength Member |
| Armor Protection | Corrugated Steel Tape for Rodent and Mechanical Protection |
| Outer Jacket | UV-Resistant FR-LSZH Black PE |
| Cable Length | Available by Meter (M) |
| Application | Direct Burial, Duct, Aerial, Campus Backbone, Building Backbone, FTTx, CATV, CCTV and Enterprise Networks |
| Cable Standard | ANSI/TIA-568.3-D, ISO/IEC 11801:2017 |
|---|---|
| Fiber Standard | ITU-T G.651 OM2 Multimode |
| Core Size | 50/125 μm |
| Number of Fibers | 12 Core |
| Fiber Construction | Single-Tube Waterproof Compound Filled Design |
| Strength Member | Water Blocking E-Glass Yarn |
| Armor | Corrugated Steel Tape |
| Outer Jacket | UV-Resistant FR-LSZH Black PE |
| Cable Weight | Approximately 82 kg/km |
| Packaging | Available by Meter (M) |
| SMART FEATURES | |
|---|---|
| Single-Tube Design | Compact Cable Structure with Easy Installation and Fiber Management |
| Steel Armored Protection | Corrugated Steel Tape Protects Against Rodents, Impact and Mechanical Damage |
| Water Blocking Design | Waterproof Compound and E-Glass Yarn Prevent Moisture Penetration |
| LSZH Flame Retardant Jacket | Low Smoke Zero Halogen Jacket Improves Fire Safety for Indoor Installations |
| High-Speed Transmission | Supports Gigabit Ethernet, 10G, 40G and 100G Ethernet, FTTx, CATV, CCTV and Backbone Networks |
| GENERAL | |
|---|---|
| Cable Type | Outdoor/Indoor Armored Single-Tube Fiber Optic Cable |
| Installation Method | Direct Burial, Duct and Aerial Installation |
| Minimum Bend Radius | 15 × Cable Diameter (Installation), 10 × Cable Diameter (Operation) |
| Installation / Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Standards Compliance | ANSI/TIA-568.3-D, ANSI/TIA-568-C.3, ISO/IEC 11801:2017, ANSI/ICEA 696, ANSI/ICEA 596, ANSI/ICEA 640, IEC 60793, IEC 60794-1-2, IEC 60332-1-2, IEC 60332-3, IEC 61034-2, IEC 60754-2, Telcordia GR-20-CORE, GR-409-CORE, ITU-T G.651, EN 50173-1, TIS 2165, RoHS |
| Warranty | 30 Years |

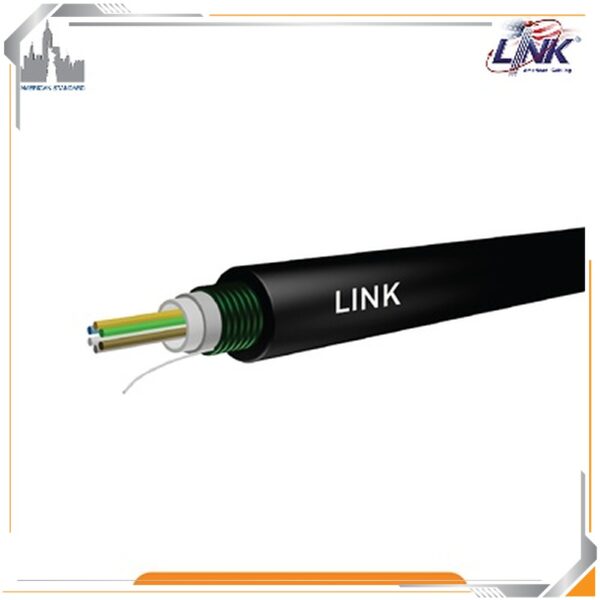

Note: The LINK UFC5312A is a 12-core OM2 50/125 μm multimode armored fiber optic cable featuring a compact single-tube construction. It incorporates corrugated steel tape armor, waterproof compound-filled loose tube, water-blocking E-glass yarn, and a UV-resistant FR-LSZH jacket, making it suitable for direct burial, duct and aerial installations in campus, enterprise and industrial backbone networks.
Important: The LINK UFC5312A supports Gigabit Ethernet, 10G, 40G and 100G Ethernet, Fiber Channel, FTTx, CATV and CCTV backbone networks. Its OM2 multimode fiber provides reliable high-bandwidth transmission over short to medium distances, while the steel armored construction offers excellent protection against moisture, rodent damage and harsh outdoor environments.
