Specifications LINK UFC5512OI
| Features | Description |
|---|---|
| Product Type | Outdoor / Indoor Drop Wire Fiber Optic Cable |
| Fiber Type | OM2 50/125 µm Multi-Mode |
| Fiber Core | 12 Core |
| Cable Construction | Drop Wire with Integrated Messenger Wire |
| Messenger Wire | 1.2 mm Galvanized Steel Wire |
| Jacket | UV-Resistant Flame-Retardant Black PE with LSZH Outer Jacket |
| Jacket Type | LSZH-FR |
| Installation | Indoor / Outdoor / Aerial |
| Fiber Standard | ITU-T G.651 |
| Length | 4,000 m / Drum |
| Weight | 53 kg/km |
| Warranty | 30 Years |
| Application | Backbone / Inter-Building / CCTV / Enterprise Network |
| FIBER OPTIC SPECIFICATION | |
|---|---|
| Fiber Type | OM2 Multi-Mode |
| Core / Cladding | 50/125 µm |
| Number of Fibers | 12 Core |
| Fiber Standard | ITU-T G.651 |
| CABLE CONSTRUCTION | |
|---|---|
| Cable Type | Outdoor / Indoor Drop Wire |
| Messenger Wire | 1.2 mm Galvanized Steel Wire |
| Jacket | UV-Resistant Flame-Retardant Black PE with LSZH Outer Jacket |
| Support Design | Integrated Messenger Wire for Aerial Installation |
| STANDARDS & COMPLIANCE | |
|---|---|
| Fiber Standard | ITU-T G.651 |
| ANSI/TIA | ANSI/TIA-568-B.3 / ANSI/TIA-568-C.3 |
| ISO/IEC | ISO/IEC 11801 |
| Telcordia | GR-20-CORE / GR-409-CORE |
| IEC | IEC 60332 / IEC 61034 / IEC 60754 / IEC 60793 / IEC 60794 |
| Compliance | RoHS |
| APPLICATION | |
|---|---|
| Network Backbone | Fiber Optic Backbone |
| Inter-Building | Building-to-Building Connectivity |
| Aerial Installation | Pole / Building Facade / Building Entrance |
| Other Applications | CCTV / Ethernet / Enterprise Network |

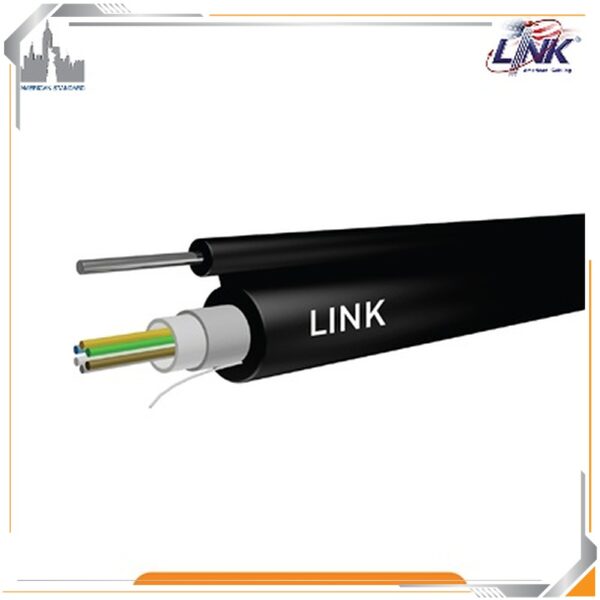

Note: The LINK UFC5512OI is a 12-core OM2 50/125 µm Multi-Mode Fiber Optic Drop Wire Cable designed for indoor and outdoor installation. It features an integrated 1.2 mm galvanized steel messenger wire for aerial installation and an LSZH-FR jacket for flame-retardant, low-smoke and zero-halogen protection. It is suitable for fiber backbone, inter-building and enterprise network applications.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ่อมกล้องวงจรปิด พัทยา ชลบุรี
