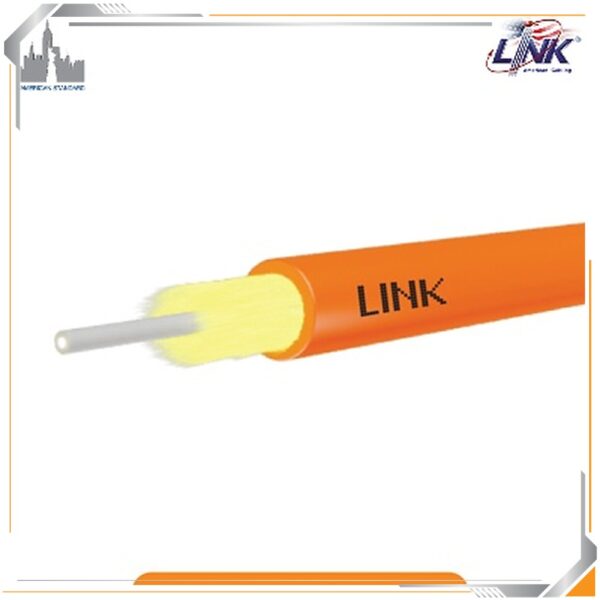

Specifications LINK UFC9201B
| Features | Description |
|---|---|
| Device Type | Indoor Simplex Fiber Optic Cable (For Pigtail / Patch Cord) |
| Fiber Type | OS2 9/125μm Single-Mode Fiber |
| Core Count | 1 Core (Simplex) |
| Cable Construction | 0.9 mm Tight Buffer / Simplex Structure |
| Jacket Material | Yellow PVC / FR Sheath |
| Installation | Indoor, Tray, Conduit and Pigtail Termination |
| Water Protection | Indoor Non-Waterproof Structure |
| Strength Member | Aramid Yarn (Kevlar) Reinforcement |
| Cable Length | 2,000 Meters per Drum (Available by Meter) |
| Application | Indoor Patch Cords, Pigtail Assembly, Internal Rack Connection, and Enterprise Networks |
| Fiber Standard | ITU-T G.652.D OS2 Single-Mode |
|---|---|
| Fiber Diameter | 9/125μm (0.9 mm Outer Diameter Buffer) |
| Flame Rating | Indoor Standard / Flame Retardant Jacket |
| Installation Type | Indoor Distribution and Termination Installation |
| Standards | ANSI/TIA-568.3-E, ISO/IEC 11801:2017, IEC 60794-2, ITU-T G.652.D, RoHS |
| Application | Gigabit Ethernet, 10G, 40G, 100G Ethernet, Optical Patch Cord, and Pigtail Splicing |
| SMART FEATURES | |
|---|---|
| Simplex 0.9mm Design | Compact and Flexible Structure Specially Designed for Pigtail and Patch Cord Assemblies |
| All-Dielectric Structure | Contains No Metallic Components for Complete Electrical Isolation |
| High Tensile Strength | Aramid Yarn Reinforcement Provides Excellent Pulling Strength and Flexibility |
| Easy Stripping | Tight Buffer Design Allows Precise and Clean Stripping for Fusion Splicing and Connectors |
| High-Speed Network Support | Supports Long-Distance Gigabit, 10G, 40G and 100G Network Applications |
| GENERAL | |
|---|---|
| Fiber Count | 1 Core |
| Cable Diameter | 0.9 ± 0.1mm |
| Cable Weight | Approx. 1.5 ± 0.5kg/km |
| Maximum Tensile Load | 100N (Installation), 50N (Operation) |
| Installation / Operating Temperature | -20°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Packing | 2,000m per Drum (Available by Meter) |
| Warranty | 30 Years |
Note: The LINK UFC9201B is a 1-core OS2 9/125μm single-mode simplex fiber optic cable designed specifically for indoor pigtail and patch cord applications. It features a compact 0.9mm tight buffer construction, flexible aramid yarn reinforcement, and a yellow outer jacket. The cable complies with ANSI/TIA, ISO/IEC, and ITU-T G.652.D standards, making it ideal for indoor rack connections, optical distribution frames, and telecommunication network patch assemblies.
Important: The LINK UFC9201B is a 1-core OS2 (9/125μm) single-mode simplex 0.9mm fiber optic cable featuring tight buffer construction, flexible aramid yarn strength members, yellow jacket, and easy-strip design for pigtail termination. It supports Gigabit Ethernet, 10G, 40G, and 100G network applications and is ideal for indoor patch cord fabrication, internal rack wiring, and enterprise fiber optic infrastructure.
