Specifications LINK UFC9306A
| Features | Description |
|---|---|
| Device Type | Outdoor/Indoor Armored Fiber Optic Cable |
| Fiber Type | OS2 Singlemode 9/125 μm |
| Core Count | 6 Core |
| Cable Construction | Single Loose Tube, Corrugated Steel Tape Armored |
| Water Blocking | Waterproof Gel Filled Tube with Water Blocking E-Glass Yarn |
| Strength Member | Water Blocking E-Glass Yarn (Non-Metallic) |
| Armor Protection | Corrugated Steel Tape for Rodent and Mechanical Protection |
| Outer Jacket | UV-Resistant FR-LSZH Black PE |
| Cable Length | 4,000 Meters / Drum |
| Application | Direct Burial, Duct, Lash Aerial, Campus Backbone, Building Backbone, FTTx, CATV, CCTV and Enterprise Networks |
| Cable Standard | ANSI/TIA-568.3-D, ISO/IEC 11801:2017 |
|---|---|
| Fiber Standard | ITU-T G.652.D OS2 Singlemode |
| Core Size | 9/125 μm |
| Number of Fibers | 6 Core |
| Fiber Construction | Single Loose Tube with Waterproof Gel Filling |
| Armor | Corrugated Steel Tape |
| Rip Cord | Included |
| Outer Jacket | UV-Resistant FR-LSZH Black PE |
| Cable Weight | Approximately 75 kg/km |
| Packaging | 4,000m Drum |
| SMART FEATURES | |
|---|---|
| Steel Armored Protection | Corrugated Steel Tape Provides Excellent Protection Against Rodents, Impact and Mechanical Damage |
| Indoor & Outdoor Installation | Suitable for Direct Burial, Duct and Lash Aerial Installation |
| Water Blocking Design | Gel-Filled Loose Tube and Water Blocking E-Glass Yarn Prevent Moisture Penetration |
| LSZH Flame Retardant Jacket | Low Smoke Zero Halogen Jacket Improves Fire Safety for Indoor Installations |
| High-Speed Transmission | Supports Gigabit Ethernet, 10G, 40G and 100G Ethernet, Fiber Channel, FTTx, CATV and CCTV Networks |
| GENERAL | |
|---|---|
| Cable Type | Outdoor/Indoor Armored Single Loose Tube Fiber Optic Cable |
| Maximum Tensile Load | Suitable for Outdoor Installation According to IEC 60794-1-2 Standards |
| Minimum Bend Radius | 15 × Cable Diameter (Installation), 10 × Cable Diameter (Operation) |
| Installation / Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Standards Compliance | ANSI/TIA-568.3-D, ANSI/TIA-568-C.3, ANSI/ICEA 696, ANSI/ICEA 596, ANSI/ICEA 640, ISO/IEC 11801:2017, IEC 60793, IEC 60794-1-2, IEC 60332-1-2, IEC 60332-3, IEC 61034-2, IEC 60754-2, Telcordia GR-20-CORE, GR-409-CORE, ITU-T G.652.D, RoHS |
| Warranty | 30 Years |

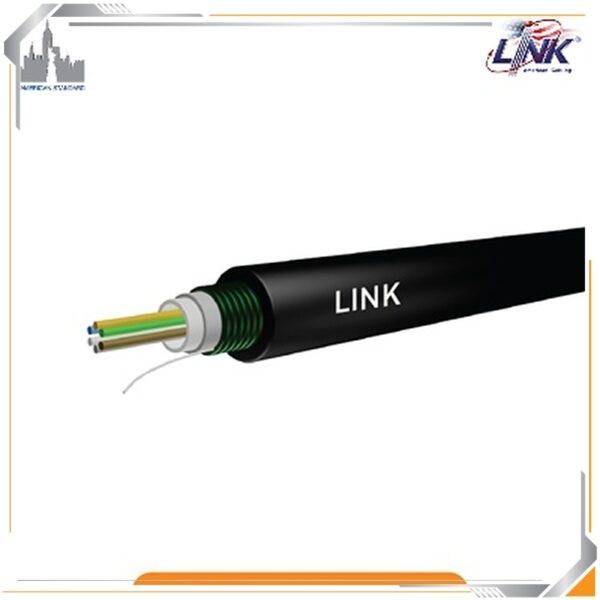

Note: The LINK UFC9306A is a 6-core OS2 9/125 μm singlemode armored fiber optic cable designed for indoor and outdoor installations. It features corrugated steel tape armor, a gel-filled loose tube, water-blocking E-glass yarn, and a UV-resistant FR-LSZH jacket, providing excellent protection against moisture, rodent attacks, and mechanical damage while supporting direct burial, duct, and aerial deployments.
Important: The LINK UFC9306A supports IEEE 802.3 Gigabit Ethernet, IEEE 802.3ae 10 Gigabit Ethernet, 40G and 100G Ethernet, Fiber Channel, ATM, FTTx, CATV and CCTV backbone applications. Its corrugated steel tape armored construction is ideal for direct burial installations, while the OS2 singlemode fiber provides long-distance, low-loss transmission and complete immunity to electromagnetic interference.
