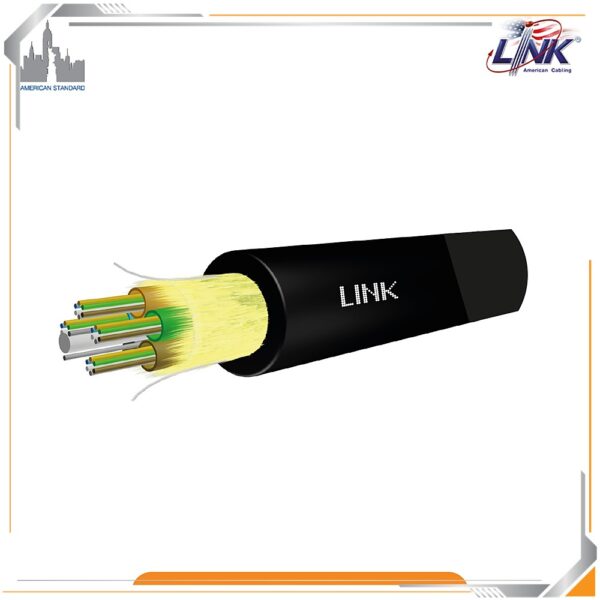

Specifications LINK UFC9360M
| Features | Description |
|---|---|
| Device Type | Outdoor/Indoor All-Dielectric Fiber Optic Cable |
| Fiber Type | OS2 Singlemode 9/125 μm |
| Core Count | 60 Core |
| Cable Construction | Multi-Tube, All-Dielectric |
| Water Blocking | Dry Water Blocking Yarn and Water Blocking Tape |
| Strength Member | FRP Central Strength Member with Glass Yarn |
| Outer Jacket | UV-Resistant FR-LSZH (Low Smoke Zero Halogen) |
| Jacket Color | Black |
| Cable Length | Sold by Meter (M) |
| Application | Campus Backbone, Building Backbone, Outdoor/Indoor Duct, FTTx, CATV, CCTV and Enterprise Networks |
| Cable Standard | ANSI/TIA-568.3-D, ISO/IEC 11801:2017 |
|---|---|
| Fiber Standard | ITU-T G.652D Singlemode OS2 |
| Core Size | 9/125 μm |
| Number of Fibers | 60 Core |
| Fiber Construction | Multi Loose Tube |
| Central Strength Member | Fiber Reinforced Plastic (FRP) |
| Water Blocking | Dry Water Blocking Tape and Glass Yarn |
| Outer Jacket | UV-Resistant FR-LSZH |
| Cable Diameter | Approximately 10.5 ± 0.5 mm |
| Cable Weight | Approximately 105 ± 10 kg/km |
| SMART FEATURES | |
|---|---|
| All-Dielectric Design | Non-Metallic Construction Eliminates Electrical Conductivity and Grounding Requirements |
| Multi-Tube Structure | Organizes High Fiber Counts Efficiently While Providing Excellent Mechanical Protection |
| Dry Water Blocking System | Water Blocking Tape and Glass Yarn Prevent Moisture Penetration Without Gel Filling |
| LSZH Flame Retardant Jacket | Provides Low Smoke and Zero Halogen Performance for Safe Indoor and Outdoor Installations |
| High-Speed Transmission | Supports 10G, 25G, 40G, 100G, 200G and 400G Ethernet, FTTx, CATV and Fiber Channel Applications |
| GENERAL | |
|---|---|
| Cable Type | Outdoor/Indoor All-Dielectric Multi-Tube Fiber Optic Cable |
| Maximum Tensile Load | 2,700 N (Installation) / 1,500 N (Operation) |
| Maximum Crush Resistance | 2,000 N / 10 cm |
| Minimum Bend Radius | 20 × Cable Diameter (Installation), 10 × Cable Diameter (Operation) |
| Installation / Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Standards Compliance | ANSI/TIA-568.3-D, ISO/IEC 11801:2017, IEC 60793, IEC 60794-1-2, IEC 60332-1-2, IEC 61034-2, IEC 60754-2, Telcordia GR-20-CORE, TIS 2165, RoHS |
| Packaging | Available by Meter (M) |
| Warranty | 30 Years |
Note: The LINK UFC9360M is a 60-core OS2 9/125 μm singlemode all-dielectric fiber optic cable featuring a multi-tube construction, FRP central strength member, dry water-blocking technology, and a UV-resistant FR-LSZH jacket. It is engineered for indoor and outdoor duct installations requiring high fiber density, long-distance transmission, and reliable backbone connectivity.
Important: The LINK UFC9360M supports backbone networks, FTTx, CATV, CCTV, Fiber Channel, and Ethernet applications from Gigabit Ethernet up to 400 Gigabit Ethernet. Its dry water-blocking design simplifies cable preparation and maintenance, while the all-dielectric construction provides immunity to electromagnetic interference and eliminates grounding requirements, making it ideal for campus, enterprise, and service provider backbone deployments.
