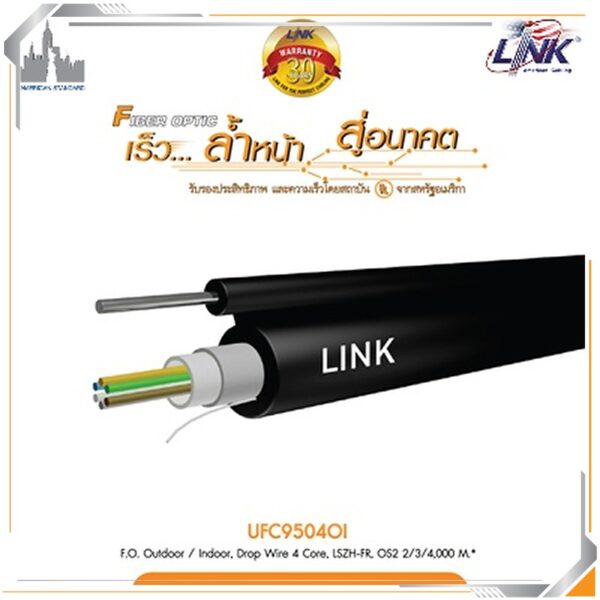

Specifications LINK UFC9504OI
| Features | Description |
|---|---|
| Product Type | Outdoor / Indoor Drop Wire Fiber Optic Cable |
| Fiber Type | OS2 9/125 µm Single-Mode |
| Fiber Core | 4 Core |
| Cable Construction | Drop Wire with Integrated Messenger Wire |
| Messenger Wire | 1.2 mm Galvanized Steel Wire |
| Jacket | UV-Resistant Flame-Retardant Black PE with LSZH Outer Jacket |
| Jacket Type | LSZH-FR |
| Installation | Indoor / Outdoor / Aerial / Building Entrance |
| Fiber Standard | ITU-T G.652D |
| Length | 2,000 / 3,000 / 4,000 m / Drum |
| Color | Black |
| Application | FTTx / Backbone / CCTV / Inter-Building / Enterprise Network |
| FIBER OPTIC SPECIFICATION | |
|---|---|
| Fiber Type | OS2 Single-Mode |
| Core / Cladding | 9/125 µm |
| Number of Fibers | 4 Core |
| Fiber Standard | ITU-T G.652D |
| Transmission | 10G / 40G / 100G Ethernet |
| CABLE CONSTRUCTION | |
|---|---|
| Cable Type | Outdoor / Indoor Drop Wire |
| Messenger Wire | 1.2 mm Galvanized Steel Wire |
| Outer Jacket | LSZH-FR |
| Jacket Material | UV-Resistant Flame-Retardant Black PE |
| Support Design | Integrated Messenger Wire for Self-Support Aerial Installation |
| STANDARDS | |
|---|---|
| Fiber Standard | ITU-T G.652D |
| ANSI/TIA | ANSI/TIA-568.3 |
| ISO/IEC | ISO/IEC 11801 |
| IEC | IEC 60793 / IEC 60794 / IEC 60332 / IEC 61034 / IEC 60754 |
| Compliance | RoHS |
| APPLICATION | |
|---|---|
| FTTx | Fiber Access and Last-Mile Network |
| Network Backbone | Fiber Optic Backbone |
| Inter-Building | Building-to-Building Connectivity |
| Aerial Installation | Pole / Building Facade / Building Entrance |
| Other Applications | CCTV / Ethernet / Telecommunication Network |
Note: The LINK UFC9504OI is a 4-core OS2 9/125 µm Single-Mode Fiber Optic Drop Wire Cable designed for indoor and outdoor installation. It features an integrated 1.2 mm galvanized steel messenger wire for self-support aerial installation and an LSZH-FR jacket for flame-retardant, low-smoke and halogen-free protection. It is suitable for FTTx, backbone, CCTV, inter-building and enterprise network applications.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ่อมกล้องวงจรปิด พัทยา ชลบุรี
