Specifications LINK UFC9506OI
| Features | Description |
|---|---|
| Product Type | Outdoor / Indoor Drop Wire Fiber Optic Cable |
| Fiber Type | OS2 9/125 µm Single-Mode |
| Fiber Core | 6 Core |
| Cable Construction | Drop Wire with Integrated Messenger Wire |
| Messenger Wire | Solid 1.2 mm |
| Jacket | LSZH-FR |
| Installation | Indoor / Outdoor / Aerial |
| Fiber Standard | ITU-T G.652D |
| Length | 4,000 m / Drum |
| Weight | 53 kg/km |
| Warranty | 30 Years |
| Application | Backbone / Inter-Building / CCTV / FTTx / Enterprise Network |
| FIBER OPTIC SPECIFICATION | |
|---|---|
| Fiber Type | OS2 Single-Mode |
| Core / Cladding | 9/125 µm |
| Number of Fibers | 6 Core |
| Fiber Standard | ITU-T G.652D |
| CABLE CONSTRUCTION | |
|---|---|
| Cable Type | Outdoor / Indoor Drop Wire |
| Messenger Wire | Solid 1.2 mm |
| Jacket | LSZH-FR |
| Support Design | Integrated Messenger Wire for Aerial Installation |
| STANDARDS & SAFETY | |
|---|---|
| Fiber Standard | ITU-T G.652D |
| Jacket | LSZH-FR (Low Smoke Zero Halogen / Flame Retardant) |
| Compliance | RoHS |
| APPLICATION | |
|---|---|
| Campus Backbone | Inter-Building Network Backbone |
| Building Backbone | Intra-Building Fiber Network |
| Aerial Installation | Pole / Building Facade / Building Entrance |
| Other Applications | CCTV / FTTx / Ethernet / Enterprise Network |

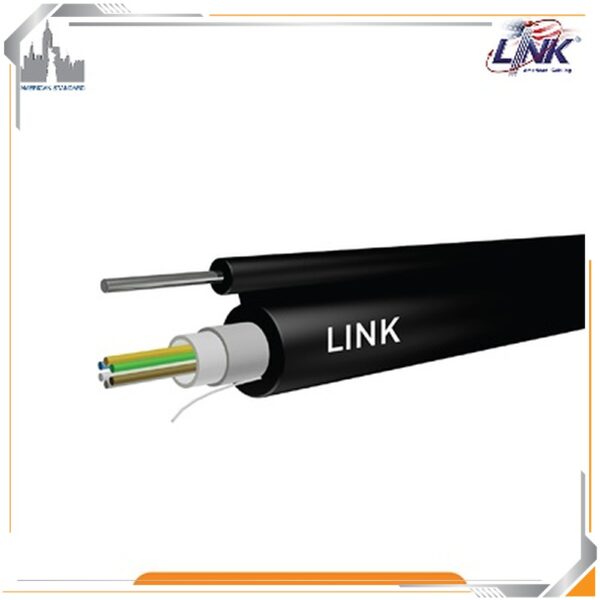

Note: The LINK UFC9506OI is a 6-core OS2 9/125 µm Single-Mode Fiber Optic Drop Wire Cable designed for indoor and outdoor installation. It features an integrated 1.2 mm solid messenger wire for aerial installation and an LSZH-FR jacket for flame-retardant, low-smoke and zero-halogen protection. It is suitable for campus backbone, building backbone, CCTV, FTTx and enterprise network applications.
