Specifications LINK UFC9660MD
| Features | Description |
|---|---|
| Product Type | Armored Multi-Tube Fiber Optic Cable |
| Fiber Type | Single-Mode OS2 |
| Fiber Size | 9/125 µm |
| Fiber Core | 60 Core |
| Construction | ARSS Multi-Tube, Steel Armored, Double Jacket |
| Armor | Steel Armored |
| Jacket | UV-Resistant Black HDPE |
| Jacket Type | Double Jacket |
| Water Protection | Water Blocking Tape and Water Blocking Yarn |
| Installation | Indoor / Outdoor / Aerial / Direct Burial |
| Length | 4,000 m / Reel |
| Fiber Standard | ITU-T G.652D |
| Application | Fiber Backbone / Inter-Building / Enterprise Network |
| FIBER OPTIC SPECIFICATION | |
|---|---|
| Fiber Type | OS2 Single-Mode |
| Core / Cladding | 9/125 µm |
| Number of Fibers | 60 Core |
| Fiber Construction | Loose Tube / Multi-Tube |
| Fiber Standard | ITU-T G.652D |
| CABLE CONSTRUCTION | |
|---|---|
| Cable Type | ARSS Multi-Tube Armored |
| Armor | Steel Armored |
| Outer Jacket | UV-Resistant Black HDPE |
| Jacket Type | Double Jacket |
| Water Protection | Water Blocking Tape and Water Blocking Yarn |
| Self Support | Suitable for Aerial Installation Without Additional Messenger Wire |
| STANDARDS | |
|---|---|
| Fiber Standard | ITU-T G.652D |
| ISO/IEC | ISO/IEC 11801 |
| ANSI/TIA | ANSI/TIA-568.3 |
| Telcordia | GR-20-CORE |
| ANSI/ICEA | ANSI/ICEA 640 |
| IEC | IEC 60793 / IEC 60794 |
| Compliance | RoHS |
| APPLICATION | |
|---|---|
| Network Backbone | Fiber Optic Backbone |
| Inter-Building | Building-to-Building Connectivity |
| Installation | Indoor / Outdoor / Aerial / Direct Burial |
| Other Applications | CCTV / FTTx / Enterprise Network |

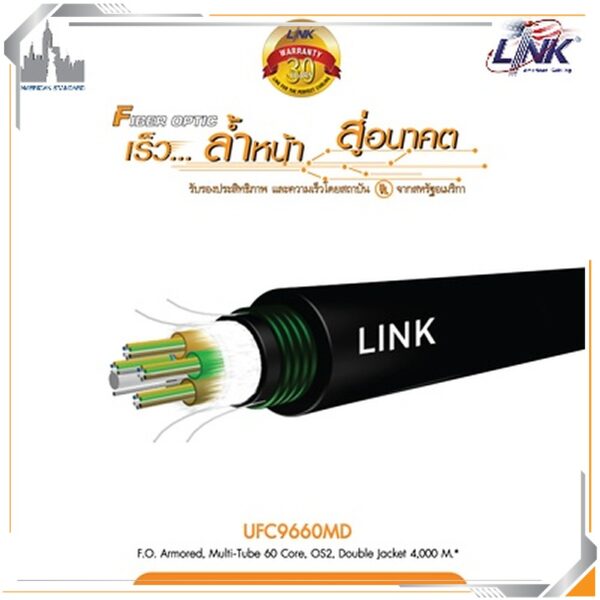

Note: The LINK UFC9660MD is a 60-core OS2 Single-Mode Fiber Optic Cable with 9/125 µm fiber construction. It features an ARSS multi-tube steel armored design, UV-resistant black HDPE double jacket, and water-blocking protection. It is suitable for indoor, outdoor, aerial, and direct burial installations and is designed for fiber backbone, inter-building, FTTx, CCTV, and enterprise network applications.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ่อมกล้องวงจรปิด พัทยา ชลบุรี
