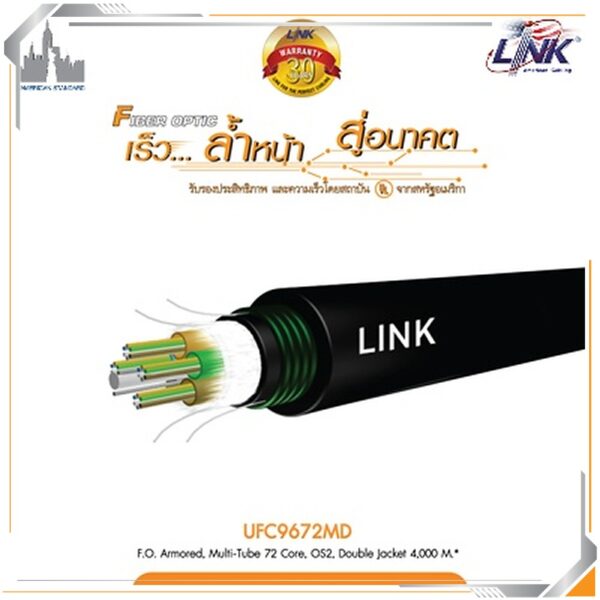

Specifications LINK UFC9672MD
| Features | Description |
|---|---|
| Product Type | ARSS Multi-Tube Armored Fiber Optic Cable |
| Fiber Type | Single-Mode OS2 |
| Fiber Size | 9/125 µm |
| Fiber Core | 72 Core |
| Construction | ARSS Multi-Tube, Steel Armored, Double Jacket |
| Armor | Corrugated Steel Tape |
| Jacket | UV-Resistant Black HDPE |
| Jacket Type | Double Jacket |
| Water Protection | Water Blocking Tape and Water Blocking Yarn |
| Self-Support | Yes |
| Installation | Indoor / Outdoor / Aerial / Direct Burial |
| Length | 4,000 m / Drum |
| Fiber Standard | ITU-T G.652D |
| Application | Backbone / Data Center / FTTx / CCTV / Enterprise Network |
| FIBER OPTIC SPECIFICATION | |
|---|---|
| Fiber Type | OS2 Single-Mode |
| Core / Cladding | 9/125 µm |
| Number of Fibers | 72 Core |
| Fiber Construction | Loose Tube / Multi-Tube |
| Fiber Standard | ITU-T G.652D |
| CABLE CONSTRUCTION | |
|---|---|
| Cable Type | ARSS Multi-Tube Armored |
| Armor | Corrugated Steel Tape |
| Outer Jacket | UV-Resistant Black HDPE |
| Jacket Type | Double Jacket |
| Water Protection | Water Blocking Tape and Water Blocking Yarn |
| Self-Support Design | Aerial Installation Without Additional Messenger Wire |
| GENERAL | |
|---|---|
| Cable Diameter | Approximately 14.4 mm |
| Cable Weight | 125 ± 15 kg/km |
| Installation Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Packing | 4,000 m / Drum |
| Warranty | 30 Years |
| APPLICATION | |
|---|---|
| Network Backbone | High-Capacity Fiber Optic Backbone |
| Data Center | Data Center Network Infrastructure |
| Inter-Building | Building-to-Building Connectivity |
| Installation | Indoor / Outdoor / Aerial / Direct Burial |
| Other Applications | FTTx / CCTV / Fiber Channel / CATV / Enterprise Network |
Note: The LINK UFC9672MD is a 72-core OS2 Single-Mode Fiber Optic Cable with 9/125 µm fiber construction. It features an ARSS multi-tube steel armored design, UV-resistant black HDPE double jacket, water-blocking protection, and self-support aerial installation capability. It is suitable for indoor, outdoor, aerial, and direct burial installations and is designed for high-capacity backbone, data center, FTTx, CCTV, and enterprise network applications.
