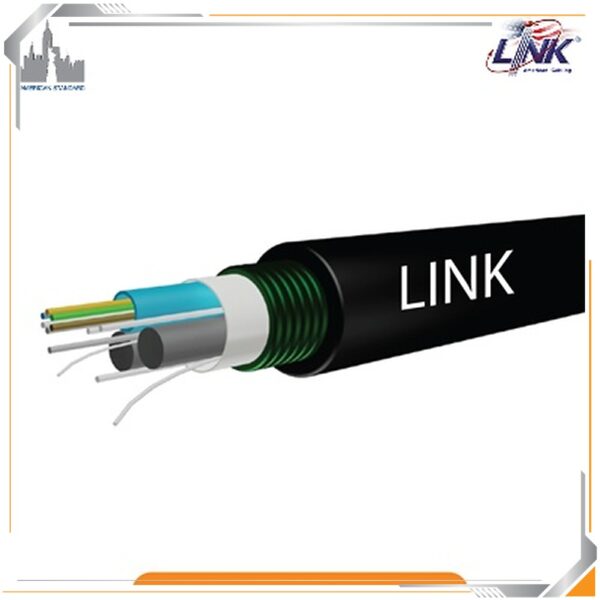

Specifications LINK UFC9706A
| Features | Description |
|---|---|
| Device Type | Outdoor Armored Fiber Optic Cable |
| Fiber Type | OS2 9/125μm Single-Mode Fiber |
| Core Count | 6 Core |
| Cable Construction | Uni-Tube, Corrugated Steel Tape Armored |
| Jacket Material | UV-Resistant Black PE (Polyethylene) Outer Sheath |
| Installation | Outdoor, Direct Burial and Duct |
| Water Protection | Waterproof Jelly Compound and Water-Blocking Tape |
| Strength Member | Corrugated Steel Tape (CST) with Steel Wire / FRP |
| Cable Length | 4,000 Meters per Drum (Available by Meter) |
| Application | Campus Backbone, Telecommunication, FTTx, CCTV, and Direct Burial Networks |
| Fiber Standard | ITU-T G.652.D OS2 Single-Mode |
|---|---|
| Fiber Diameter | 9/125μm |
| Flame Rating | UV-Resistant, Outdoor PE Sheath |
| Installation Type | Outdoor Direct Burial and Duct Installation |
| Standards | ANSI/TIA-568.3-E, ISO/IEC 11801:2017, IEC 60794-1-2, ITU-T G.652.D, RoHS |
| Application | Gigabit Ethernet, 10G, 40G, 100G Ethernet, PON, CATV, CCTV and FTTx |
| SMART FEATURES | |
|---|---|
| Uni-Tube Construction | Provides Compact Design and Excellent Mechanical Protection for Fibers |
| Armored Design | Corrugated Steel Tape (CST) Armor Offers Superior Anti-Rodent and Crush Resistance |
| Water Blocking | Filled with Waterproof Jelly Compound to Prevent Moisture Penetration |
| Heavy-Duty Jacket | Rugged PE Sheath Withstands UV Radiation and Harsh Outdoor Environments |
| High-Speed Network Support | Supports Long-Distance Gigabit, 10G, 40G and 100G Network Applications |
| GENERAL | |
|---|---|
| Fiber Count | 6 Core |
| Cable Diameter | 8.5 ± 1.0mm |
| Cable Weight | 75 ± 10kg/km |
| Maximum Tensile Load | 1,500N (Installation), 600N (Operation) |
| Installation / Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Packing | 4,000m per Drum (Available by Meter) |
| Warranty | 30 Years |
Note: The LINK UFC9706A is a 6-core OS2 9/125μm single-mode fiber optic cable designed for robust outdoor installations. It features a uni-tube construction, corrugated steel tape (CST) armor for rodent protection, UV-resistant PE outer sheath, and waterproof design. The cable complies with ANSI/TIA, ISO/IEC, IEC, and ITU-T G.652.D standards, making it highly suitable for direct burial, campus backbone, FTTx, CCTV, and telecommunication network applications.
Important: The LINK UFC9706A is a 6-core OS2 (9/125μm) single-mode armored fiber optic cable featuring uni-tube construction, corrugated steel tape armor, UV-resistant PE outer sheath, robust crush resistance, waterproof design, and support for direct burial and duct installation. It supports Gigabit Ethernet, 10G, 40G, and 100G long-distance network applications and is ideal for backbone links, outdoor inter-building connections, FTTx, CCTV, and robust enterprise fiber optic infrastructure.
