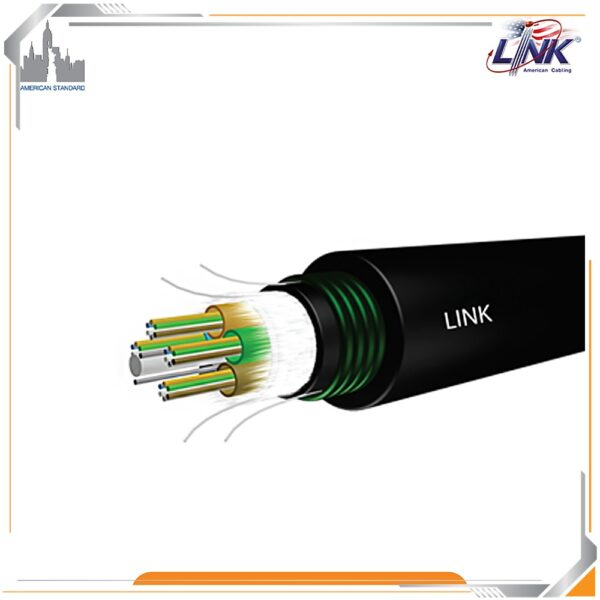

Specifications LINK UFC9724MAD
| Features | Description |
|---|---|
| Device Type | Outdoor Double Armored Fiber Optic Cable |
| Fiber Type | OM2 50/125μm Multi-Mode Fiber |
| Core Count | 24 Core |
| Cable Construction | Uni-Tube, Double Corrugated Steel Tape Armored |
| Jacket Material | UV-Resistant Black PE (Polyethylene) Outer Sheath |
| Installation | Outdoor, Heavy-Duty Direct Burial and Duct |
| Water Protection | Waterproof Jelly Compound and Water-Blocking Tape |
| Strength Member | Double Corrugated Steel Tape (CST) with Steel Wire / FRP |
| Cable Length | 4,000 Meters per Drum (Available by Meter) |
| Application | Campus Backbone, Telecommunication, FTTx, CCTV, and Heavy-Duty Direct Burial Networks |
| Fiber Standard | ITU-T G.651 OM2 Multi-Mode |
|---|---|
| Fiber Diameter | 50/125μm |
| Flame Rating | UV-Resistant, Outdoor PE Sheath |
| Installation Type | Outdoor Heavy-Duty Direct Burial and Duct Installation |
| Standards | ANSI/TIA-568.3-E, ISO/IEC 11801:2017, IEC 60794-1-2, ITU-T G.651, RoHS |
| Application | Gigabit Ethernet, 10G, Fiber Channel, ATM, CATV, CCTV and FTTx |
| SMART FEATURES | |
|---|---|
| Uni-Tube Construction | Provides Compact Design and Excellent Mechanical Protection for Fibers |
| Double Armored Design | Double Corrugated Steel Tape (CST) Armor Offers Maximum Anti-Rodent and Extreme Crush Resistance |
| Water Blocking | Filled with Waterproof Jelly Compound to Prevent Moisture Penetration |
| Heavy-Duty Jacket | Rugged PE Sheath Withstands UV Radiation and Harsh Outdoor Environments |
| High-Speed Network Support | Supports Gigabit Ethernet and 10G Network Applications |
| GENERAL | |
|---|---|
| Fiber Count | 24 Core |
| Cable Diameter | 9.5 ± 1.0mm |
| Cable Weight | 85 ± 10kg/km |
| Maximum Tensile Load | 2,000N (Installation), 800N (Operation) |
| Installation / Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Packing | 4,000m per Drum (Available by Meter) |
| Warranty | 30 Years |
Note: The LINK UFC9724MAD is a 24-core OM2 50/125μm multimode double armored fiber optic cable designed for extremely robust outdoor installations. It features a uni-tube construction, double corrugated steel tape (CST) armor for maximum rodent protection and high crush resistance, UV-resistant PE outer sheath, and waterproof design. The cable complies with ANSI/TIA, ISO/IEC, IEC, and ITU-T G.651 standards, making it highly suitable for heavy-duty direct burial, campus backbone, FTTx, CCTV, and telecommunication network applications.
Important: The LINK UFC9724MAD is a 24-core OM2 (50/125μm) multimode double armored fiber optic cable featuring uni-tube construction, double corrugated steel tape armor, UV-resistant PE outer sheath, superior crush resistance, waterproof design, and support for heavy-duty direct burial and duct installation. It supports Gigabit Ethernet and 10G network applications and is ideal for critical backbone links, harsh outdoor inter-building connections, CCTV, and robust enterprise fiber optic infrastructure.
