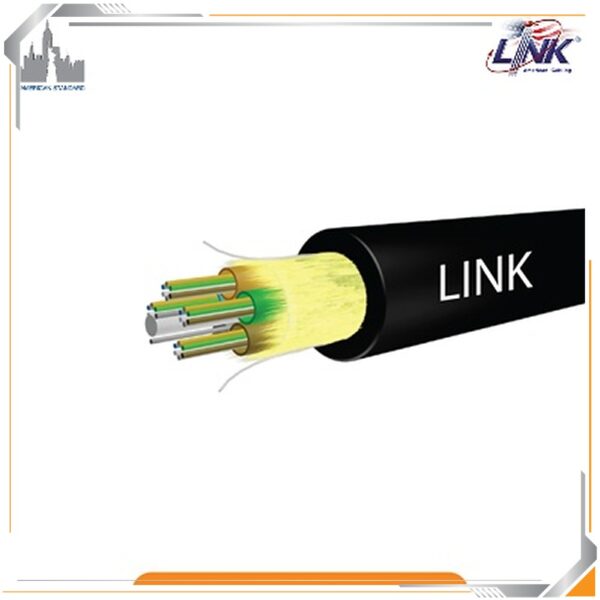

Specifications LINK UFC9760CM
| Features | Description |
|---|---|
| Device Type | Outdoor / Indoor ADSS Fiber Optic Cable (All-Dielectric Self-Support) |
| Fiber Type | OS2 9/125μm Single-Mode Fiber |
| Core Count | 60 Core |
| Cable Construction | All-Dielectric, Multi-Tube, Single Jacket (Self-Support Aerial) |
| Jacket Material | UV-Resistant Black HDPE Outer Sheath |
| Installation | Outdoor Aerial Span, Pole-to-Pole, Duct and Indoor Backbone |
| Water Protection | Thixotropic Jelly-Filled Loose Tube, Water-Blocking Yarns and Tape |
| Strength Member | FRP Central Strength Member with E-Glass Yarn Reinforcement |
| Cable Length | 4,000 Meters per Drum (Available by Meter) |
| Application | Aerial Span Backbone, Inter-Building, FTTx, CCTV, Data Center and Enterprise Networks |
| Fiber Standard | ITU-T G.652.D OS2 Single-Mode |
|---|---|
| Fiber Diameter | 9/125μm |
| Flame Rating | UV-Resistant, Outdoor HDPE Sheath |
| Installation Type | ADSS Aerial Self-Support and Duct Installation |
| Standards | ANSI/TIA/EIA-568-B.3/C.3, ISO/IEC 11801:2002, Telcordia (Bellcore) GR-20-CORE, ANSI/ICEA 640, ITU-T G.652.D, IEEE P-1222, TIS 2166-2548, RoHS |
| Application | Gigabit Ethernet, 10G, 40G, 100G Ethernet, PON, CATV, CCTV and FTTx |
| SMART FEATURES | |
|---|---|
| Multi-Tube Construction | Provides Excellent Fiber Organization and Mechanical Protection for Multi-Core Systems |
| ADSS Self-Support Design | Allows Direct Aerial Installation Between Poles or Buildings Without Steel Wire / Messenger Wire |
| All-Dielectric Structure | Contains No Metallic Components for Complete Lightning Immunity and Electrical Isolation |
| Water Blocking | Thixotropic Jelly and Water-Blocking Yarns Prevent Moisture Penetration |
| High-Speed Network Support | Supports Long-Distance Gigabit, 10G, 40G and 100G Network Applications |
| GENERAL | |
|---|---|
| Fiber Count | 60 Core |
| Cable Diameter | 11.0 ± 1.0mm |
| Cable Weight | 78 ± 10kg/km |
| Maximum Tensile Load | 1,800N (Installation / Operation) |
| Installation / Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Packing | 4,000m per Drum (Available by Meter) |
| Warranty | 30 Years |
Note: The LINK UFC9760CM is a 60-core OS2 9/125μm single-mode ADSS fiber optic cable designed for aerial pole-to-pole and outdoor self-support installations. It features an all-dielectric multi-tube construction, UV-resistant HDPE outer sheath, FRP strength member, and comprehensive water-blocking protection. The cable complies with international standards including TIA/EIA, ISO/IEC, Telcordia, and ITU-T G.652.D, making it ideal for aerial backbone links, inter-building connections, FTTx, CCTV, and long-distance enterprise networks.
Important: The LINK UFC9760CM is a 60-core OS2 (9/125μm) single-mode ADSS self-support fiber optic cable featuring an all-dielectric multi-tube structure, UV-resistant HDPE sheath, lightning immunity, waterproof design, and high tensile strength (1,800N) for aerial span installations. It supports Gigabit Ethernet, 10G, 40G, and 100G long-distance network applications and is ideal for outdoor pole-to-pole links, inter-building connections, FTTx, CCTV, and robust telecommunication infrastructure.
