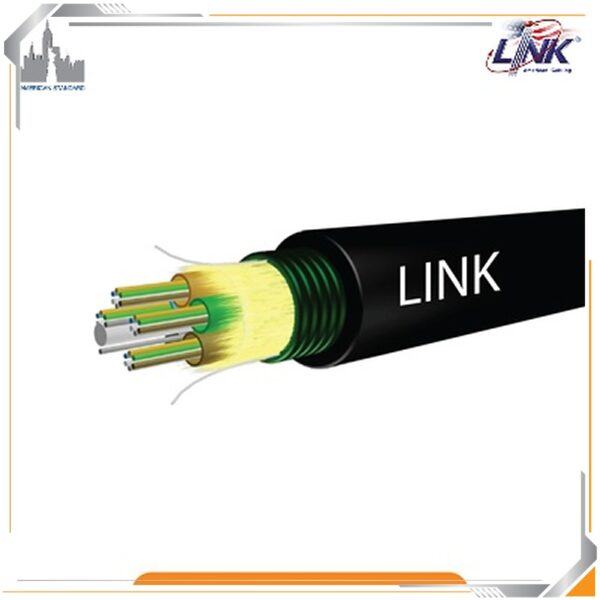

Specifications LINK UFC9772MA
| Features | Description |
|---|---|
| Device Type | Outdoor Armored Fiber Optic Cable |
| Fiber Type | OM2 50/125μm Multi-Mode Fiber |
| Core Count | 72 Core |
| Cable Construction | Multi-Tube, Corrugated Steel Tape Armored |
| Jacket Material | UV-Resistant Black PE (Polyethylene) Outer Sheath |
| Installation | Outdoor, Direct Burial and Duct |
| Water Protection | Waterproof Jelly Compound and Water-Blocking Tape |
| Strength Member | Corrugated Steel Tape (CST) with Steel Wire / FRP |
| Cable Length | 4,000 Meters per Drum (Available by Meter) |
| Application | Campus Backbone, Telecommunication, FTTx, CCTV, and Direct Burial Networks |
| Fiber Standard | ITU-T G.651 OM2 Multi-Mode |
|---|---|
| Fiber Diameter | 50/125μm |
| Flame Rating | UV-Resistant, Outdoor PE Sheath |
| Installation Type | Outdoor Direct Burial and Duct Installation |
| Standards | ANSI/TIA-568.3-E, ISO/IEC 11801:2017, IEC 60794-1-2, ITU-T G.651, RoHS |
| Application | Gigabit Ethernet, 10G, Fiber Channel, ATM, CATV, CCTV and FTTx |
| SMART FEATURES | |
|---|---|
| Multi-Tube Construction | Provides Excellent Fiber Organization and Mechanical Protection for High Fiber Counts |
| Armored Design | Corrugated Steel Tape (CST) Armor Offers Superior Anti-Rodent and Crush Resistance |
| Water Blocking | Filled with Waterproof Jelly Compound to Prevent Moisture Penetration |
| Heavy-Duty Jacket | Rugged PE Sheath Withstands UV Radiation and Harsh Outdoor Environments |
| High-Speed Network Support | Supports Gigabit Ethernet and 10G Network Applications |
| GENERAL | |
|---|---|
| Fiber Count | 72 Core |
| Cable Diameter | 10.5 ± 1.0mm |
| Cable Weight | 95 ± 10kg/km |
| Maximum Tensile Load | 1,500N (Installation), 600N (Operation) |
| Installation / Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Packing | 4,000m per Drum (Available by Meter) |
| Warranty | 30 Years |
Note: The LINK UFC9772MA is a 72-core OM2 50/125μm multimode fiber optic cable designed for robust outdoor installations. It features a multi-tube construction, corrugated steel tape (CST) armor for rodent protection, UV-resistant PE outer sheath, and waterproof design. The cable complies with ANSI/TIA, ISO/IEC, IEC, and ITU-T G.651 standards, making it highly suitable for direct burial, campus backbone, FTTx, CCTV, and telecommunication network applications.
Important: The LINK UFC9772MA is a 72-core OM2 (50/125μm) multimode armored fiber optic cable featuring multi-tube construction, corrugated steel tape armor, UV-resistant PE outer sheath, robust crush resistance, waterproof design, and support for direct burial and duct installation. It supports Gigabit Ethernet and 10G network applications and is ideal for backbone links, outdoor inter-building connections, CCTV, and robust enterprise fiber optic infrastructure.
