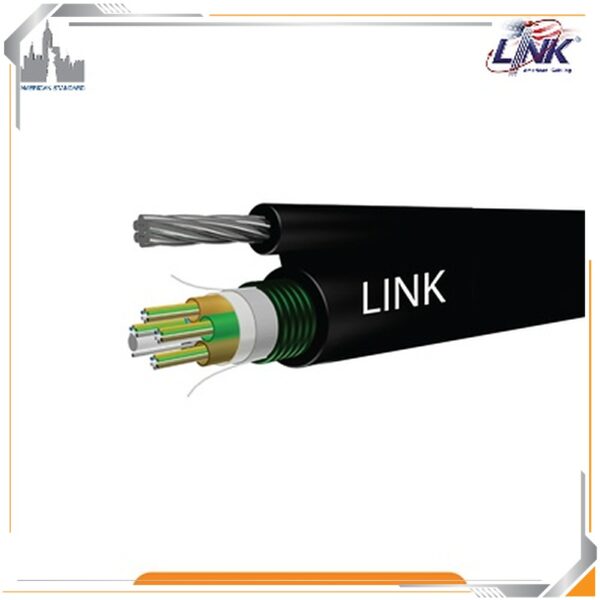

Specifications LINK UFC9824MA
| Features | Description |
|---|---|
| Product Type | F.O. FIG.8 Multi-Tube Armored Fiber Optic Cable |
| Fiber Type | OS2 9/125 µm Single-Mode |
| Fiber Core | 24 Core |
| Cable Construction | FIG.8, Multi-Tube, Steel Armored, Single Jacket |
| Armor | Corrugated Steel Tape |
| Jacket Material | HDPE |
| Messenger Wire | Built-in Stranded Steel Messenger Wire |
| Water Protection | Dry Water Blocking Tape and Yarn |
| Installation | Aerial / Outdoor / Direct Burial / Duct |
| Fiber Standard | ITU-T G.652D |
| Length | 4,000 m / Drum |
| Cable Diameter | Approximately 14 mm |
| Application | Backbone / FTTx / CCTV / Inter-Building / Enterprise Network |
| FIBER OPTIC SPECIFICATION | |
|---|---|
| Fiber Type | OS2 Single-Mode |
| Core / Cladding | 9/125 µm |
| Number of Fibers | 24 Core |
| Fiber Standard | ITU-T G.652D |
| CABLE CONSTRUCTION | |
|---|---|
| Cable Type | FIG.8 Multi-Tube Armored |
| Armor | Corrugated Steel Tape |
| Jacket | HDPE Single Jacket |
| Messenger | Built-in Stranded High-Strength Galvanized Steel Wire |
| Water Blocking | Dry Water Blocking Tape / Yarn |
| APPLICATION | |
|---|---|
| Aerial Installation | Pole-to-Pole / Building-to-Building |
| Backbone | High-Capacity Fiber Optic Backbone |
| FTTx | Fiber Access Network |
| CCTV | Outdoor CCTV Fiber Infrastructure |
| Other Applications | Enterprise / Inter-Building / Data Network |
Note: The LINK UFC9824MA is a 24-core OS2 9/125 µm Single-Mode Fiber Optic Cable featuring FIG.8 Multi-Tube steel armored construction with a single HDPE jacket. It includes a built-in stranded steel messenger wire for self-support aerial installation, corrugated steel tape for mechanical and rodent protection, and dry water-blocking materials for moisture protection. It is suitable for aerial, outdoor, direct burial and duct installations.
