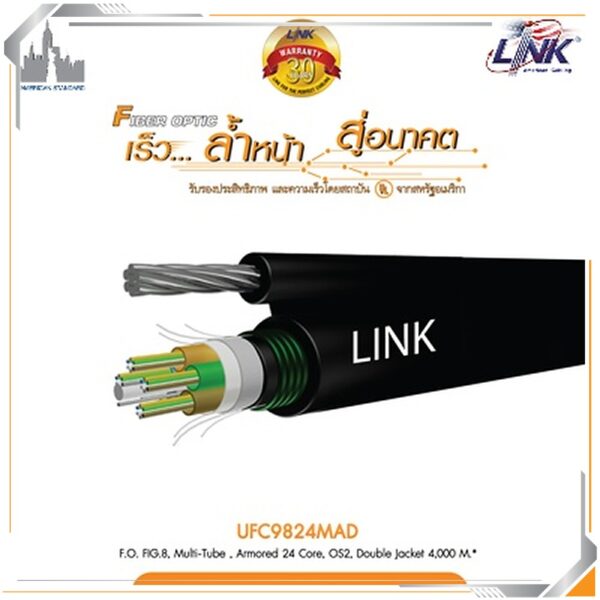

Specifications LINK UFC9824MAD
| Features | Description |
|---|---|
| Product Type | F.O. FIG.8 Multi-Tube Armored Fiber Optic Cable |
| Fiber Type | OS2 9/125 µm Single-Mode |
| Fiber Core | 24 Core |
| Cable Construction | FIG.8, Multi-Tube, Steel Armored, Double Jacket |
| Armor | Corrugated Steel Tape |
| Inner Jacket | Black MDPE |
| Outer Jacket | UV-Proof Black HDPE |
| Messenger Wire | 7 × 1.0 mm Extra High Strength Galvanized Steel Wire |
| Water Protection | Water Blocking Tape and Water Blocking Yarn |
| Installation | Aerial / Outdoor / Building Installation |
| Fiber Standard | ITU-T G.652D |
| Length | 2,000 / 3,000 / 4,000 m / Drum |
| Application | Backbone / FTTx / CCTV / Inter-Building / Enterprise Network |
| FIBER OPTIC SPECIFICATION | |
|---|---|
| Fiber Type | OS2 Single-Mode |
| Core / Cladding | 9/125 µm |
| Number of Fibers | 24 Core |
| Fiber Standard | ITU-T G.652D |
| CABLE CONSTRUCTION | |
|---|---|
| Cable Type | FIG.8 Multi-Tube Armored Double Jacket |
| Loose Tube | PBT |
| Fiber per Tube | 6 Fibers |
| Inner Sheath | Black Medium Density Polyethylene (MDPE) |
| Armor | Corrugated Chrome Steel Tape with Polymer Coating |
| Outer Sheath | UV-Proof Black High Density Polyethylene (HDPE) |
| Messenger Wire | 7 × 1.0 mm Extra High Strength Galvanized Steel Wire |
| MECHANICAL SPECIFICATION | |
|---|---|
| Maximum Span Length | 100 m |
| Maximum Tensile Load | 6,000 N |
| Maximum Crush Resistance | 4,400 N / 10 cm |
| Minimum Bending Radius | 20 × Cable Diameter (Installation) / 10 × Cable Diameter (Operation) |
| Maximum Wind Velocity | 126 km/h |
| APPLICATION | |
|---|---|
| Aerial Installation | Pole-to-Pole / Building-to-Building |
| Backbone | High-Capacity Fiber Optic Backbone |
| FTTx | Fiber Access Network |
| CCTV | Outdoor CCTV Fiber Infrastructure |
| Other Applications | Enterprise / Inter-Building / Data Network |
Note: The LINK UFC9824MAD is a 24-core OS2 9/125 µm Single-Mode Fiber Optic Cable featuring FIG.8 Multi-Tube steel armored construction with a double jacket. It includes a 7 × 1.0 mm extra high-strength galvanized steel messenger wire for self-support aerial installation, corrugated steel tape armor for mechanical and rodent protection, and water-blocking materials for moisture protection. It is suitable for outdoor backbone, FTTx, CCTV and inter-building network applications.
