Specifications LINK UFC9848MA
| Features | Description |
|---|---|
| Product Type | F.O. FIG.8 Multi-Tube Armored Fiber Optic Cable |
| Fiber Type | OS2 9/125 µm Single-Mode |
| Fiber Core | 48 Core |
| Cable Construction | FIG.8, Multi-Tube, Steel Armored, Single Jacket |
| Armor | Steel Armored |
| Jacket | UV-Resistant Black HDPE |
| Messenger Wire | 7 × 1.0 mm Galvanized Steel Wire |
| Water Protection | Dry Water Blocking Tape / Yarn |
| Installation | Aerial / Outdoor / Building Installation |
| Fiber Standard | ITU-T G.652D |
| Length | 4,000 m / Drum |
| Application | Backbone / FTTx / CCTV / Inter-Building / Enterprise Network |
| FIBER OPTIC SPECIFICATION | |
|---|---|
| Fiber Type | OS2 Single-Mode |
| Core / Cladding | 9/125 µm |
| Number of Fibers | 48 Core |
| Fiber Standard | ITU-T G.652D |
| CABLE CONSTRUCTION | |
|---|---|
| Cable Type | FIG.8 Multi-Tube Armored |
| Armor | Steel Armored |
| Outer Jacket | UV-Resistant Black HDPE |
| Jacket Type | Single Jacket |
| Messenger Wire | 7 × 1.0 mm Galvanized Steel Wire |
| Water Blocking | Dry Water Blocking Tape / Yarn |
| APPLICATION | |
|---|---|
| Aerial Installation | Pole-to-Pole / Building-to-Building |
| Backbone | High-Capacity Fiber Optic Backbone |
| FTTx | Fiber Access Network |
| CCTV | Outdoor CCTV Fiber Infrastructure |
| Other Applications | Enterprise / Inter-Building / Data Network |

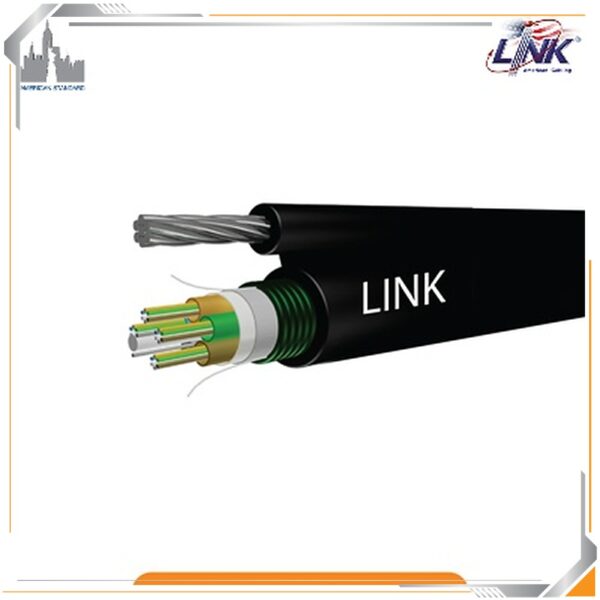

Note: The LINK UFC9848MA is a 48-core OS2 9/125 µm Single-Mode Fiber Optic Cable featuring FIG.8 Multi-Tube steel armored construction with a single HDPE jacket. It includes an integrated galvanized steel messenger wire for self-support aerial installation and dry water-blocking protection. It is suitable for aerial, outdoor, backbone, FTTx, CCTV, and inter-building network applications.
