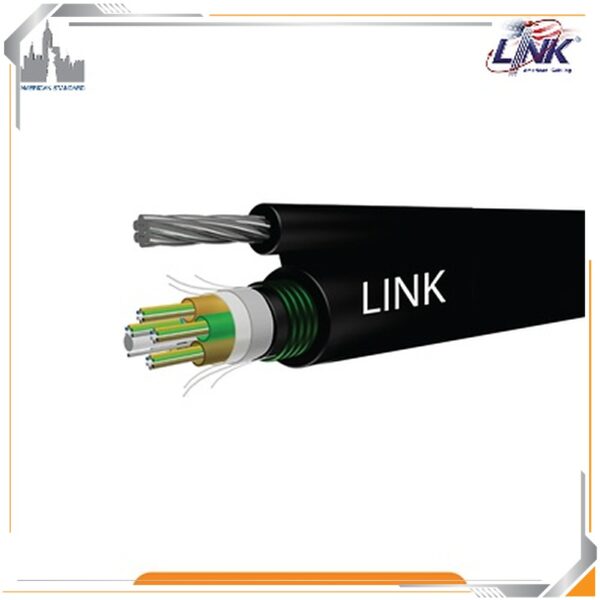

Specifications LINK UFC9872MAD
| Features | Description |
|---|---|
| Product Type | F.O. FIG.8 Multi-Tube Armored Fiber Optic Cable |
| Fiber Type | OS2 9/125 µm Single-Mode |
| Fiber Core | 72 Core |
| Cable Construction | FIG.8, Multi-Tube, Steel Armored, Double Jacket |
| Armor | Corrugated Steel Tape |
| Inner Jacket | Medium Density Polyethylene (MDPE) |
| Outer Jacket | UV-Resistant Black High Density Polyethylene (HDPE) |
| Messenger Wire | 7 × 1.0 mm Galvanized Steel Wire |
| Water Protection | Water Blocking Tape and Water Blocking Yarn |
| Installation | Aerial / Outdoor / Building Installation |
| Fiber Standard | ITU-T G.652D |
| Length | 2,000 / 3,000 / 4,000 m / Drum |
| Application | Backbone / FTTx / CCTV / Inter-Building / Enterprise Network |
| FIBER OPTIC SPECIFICATION | |
|---|---|
| Fiber Type | OS2 Single-Mode |
| Core / Cladding | 9/125 µm |
| Number of Fibers | 72 Core |
| Fiber Standard | ITU-T G.652D |
| CABLE CONSTRUCTION | |
|---|---|
| Cable Type | FIG.8 Multi-Tube Armored Double Jacket |
| Loose Tube | PBT |
| Armor | Corrugated Steel Tape |
| Inner Sheath | Medium Density Polyethylene (MDPE) |
| Outer Sheath | UV-Resistant Black High Density Polyethylene (HDPE) |
| Messenger Wire | 7 × 1.0 mm Galvanized Steel Wire |
| Water Blocking | Water Blocking Tape / Yarn |
| OPTICAL SPECIFICATION | |
|---|---|
| Attenuation @ 1310 nm | ≤ 0.35 dB/km |
| Attenuation @ 1550 nm | ≤ 0.21 dB/km |
| Mode Field Diameter @ 1310 nm | 9.2 ± 0.4 µm |
| Mode Field Diameter @ 1550 nm | 10.4 ± 0.5 µm |
| Cladding Diameter | 125 ± 0.7 µm |
| Cut-off Wavelength | ≤ 1260 nm (Cable) |
| Chromatic Dispersion @ 1550 nm | ≤ 18 ps/nm·km |
| PMD | ≤ 0.20 ps/√km |
| APPLICATION | |
|---|---|
| Aerial Installation | Pole-to-Pole / Building-to-Building |
| Backbone | High-Capacity Fiber Optic Backbone |
| Inter-Building | Building-to-Building Network Connectivity |
| FTTx | Fiber Access Network |
| CCTV | Outdoor CCTV Fiber Infrastructure |
| Enterprise Network | High-Density Fiber Infrastructure |
Note: The LINK UFC9872MAD is a 72-core OS2 9/125 µm Single-Mode Fiber Optic Cable featuring FIG.8 Multi-Tube steel armored construction with double jacket protection. It includes a 7 × 1.0 mm galvanized steel messenger wire for self-support aerial installation, corrugated steel tape armor for mechanical protection, and water-blocking materials for moisture protection. It is suitable for outdoor backbone, FTTx, CCTV, inter-building and enterprise network applications.
