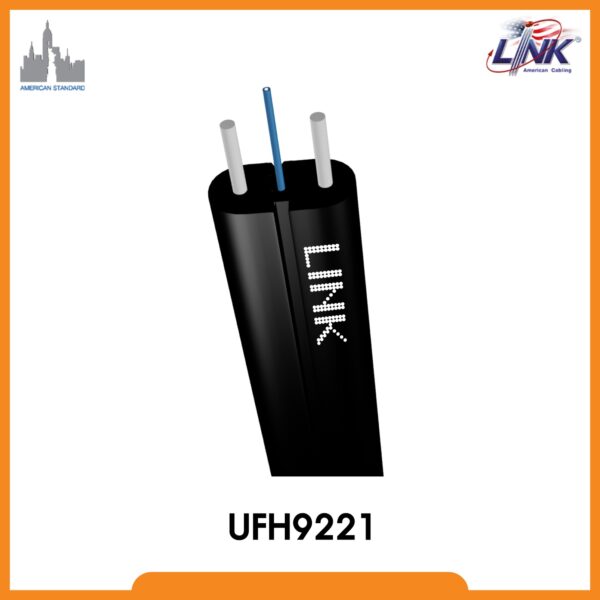

Specifications LINK UFH9221
| Features | Description |
|---|---|
| Device Type | FTTR Oval 1-Core Fiber Optic Cable (Distribution Cable) |
| Brand / Series | LINK (Interlink) / Double-Q Series (Super-S Series Solution) |
| Fiber Type | Single-Mode Fiber (ITU-T G.657A2, Fully Compatible with G.652D) |
| Core Count | 1 Core (1C Structure) |
| Cable Construction | Oval Profile Distribution Cable with Strength Members |
| Jacket Material | Flame Retardant Low Smoke Zero Halogen (FR-LSZH) with PE Protection |
| Cable Dimensions | Outer Diameter approx. 2.0 x 3.0 mm |
| Installation | Indoor and Outdoor Environmental Deployment (Distribution & Backbone Routing) |
| Packaging Length | Standard Box Options (e.g., 1,000 Meters / Box for UFH9221, with variant options like UFH9221-1 for 100M and UFH9221-3 for 300M) |
| Application | FTTx / FTTR (Fiber to the Room) Systems, Condominiums, Dormitories, Hotels, and High-Speed Enterprise Networks |
| Fiber Standard | ITU-T G.657A2 Single-Mode (Superior Bend Insensitivity) |
|---|---|
| Flame Rating | Meets IEC 60332-1, IEC 60754-1 & 2, and IEC 61034-2 Standards |
| Environmental Standards | RoHS Compliant |
| Tensile Performance | High Tensile Strength with Lightweight Structure for Easy Pulling and Routing |
| SMART FEATURES | |
|---|---|
| FTTR Double-Q Design | Engineered specifically for modern Fiber-to-the-Room (FTTR) applications requiring high-density, low-loss distribution |
| Low Smoke Zero Halogen | LSZH jacket ensures safety by minimizing toxic gas emissions and smoke density during fire hazards |
| Bend-Insensitive Performance | Built with G.657A2 fibers to support tight corner routing inside residential and commercial buildings without macro-bending signal loss |
| Indoor & Outdoor Versatility | Robust environmental skin allows seamless transitions across indoor pathways and outdoor building riser links |
| GENERAL | |
|---|---|
| Core Diameter | Cladding 125$\mu$m Single-Mode Core Structure |
| Color | Black |
| Warranty | Standard Manufacturer Warranty (Up to 30 Years System Link Warranty when installed under certified guidelines) |
Note: The LINK UFH9221 is a 1-core single-mode oval fiber optic distribution cable belonging to the Double-Q / Super-S series, supplied in a standard 1,000-meter box. Utilizing G.657A2 bend-insensitive fiber and a safe LSZH jacket, it is optimized for high-performance FTTx and FTTR deployments inside multi-dwelling units, hotels, and office complexes.
Important: The LINK UFH9221 cable features a compact 2.0 x 3.0 mm oval profile designed for efficient distribution pathways. Its flame-retardant and low-smoke properties comply with strict international fire safety standards, making it an ideal choice for professional indoor risers and room-to-room optical infrastructure.
