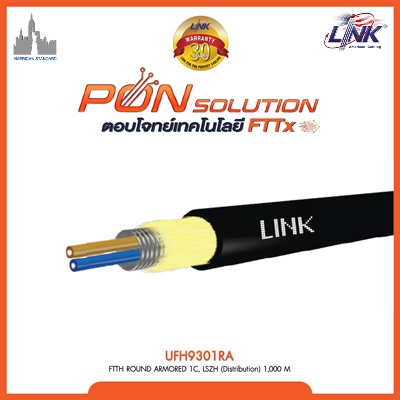

Specifications LINK UFH9301RA
| Features | Description |
|---|---|
| Device Type | FTTH / FTTx Round Armored 1-Core Fiber Optic Cable (Distribution Cable) |
| Brand / Series | LINK (Interlink) / FTTR / FTTH Round Armored Solution |
| Fiber Type | Single-Mode Fiber (ITU-T G.657A1 / G.657A2 Bend-Insensitive) |
| Core Count | 1 Core (1C Structure) |
| Cable Construction | Round Profile Distribution Cable with Integrated Steel Armored Shield and Aramid Yarn |
| Jacket Material | Flame Retardant Low Smoke Zero Halogen (FR-LSZH, Indoor/Outdoor Rated) |
| Installation | Indoor, Outdoor, Direct Burial, and Underground Duct Environmental Deployment |
| Packaging Length | Standard Reel: 1,000 Meters / Reel |
| Application | FTTx, Last-Mile Direct Burial Drops, Harsh Outdoor Routes, and Enterprise Networks |
| Fiber Standard | ITU-T G.657A1/A2 Single-Mode (Superior Bend Insensitivity) |
|---|---|
| Armor Protection | Built-in Metallic Steel Armor Providing High Crush Resistance and Rodent/Direct-Burial Protection |
| Flame Rating | Meets IEC Standards for Non-Flame Propagation and Low Smoke Emission (LSZH) |
| Environmental Standards | RoHS Compliant |
| SMART FEATURES | |
|---|---|
| Steel Armored Construction | Features an integrated metallic armor layer offering exceptional defense against crushing forces, external impacts, and rodent damage |
| Aramid Yarn Reinforcement | Equipped with high-strength aramid yarns to absorb high tensile loads during pulling and long-span installations |
| Low Smoke Zero Halogen | LSZH outer sheath minimizes smoke density and eliminates toxic halogen gas emissions during fire hazards |
| Indoor & Outdoor Versatility | Ruggedized round skin supports seamless transitions from outdoor direct-burial/conduit routes into indoor spaces |
| GENERAL | |
|---|---|
| Core Diameter | Cladding 125 $\mu$m Single-Mode Core Structure |
| Color | Black / Standard Outdoor UV-Resistant Jacket |
| Warranty | Standard Manufacturer Warranty (Up to 30 Years System Link Warranty when installed under certified guidelines) |
Note: The LINK UFH9301RA is a 1-core single-mode round armored fiber optic distribution cable supplied on a 1,000-meter reel. Integrating bend-insensitive G.657A fiber, aramid yarn strength members, and a heavy-duty steel armor shield inside an FR-LSZH jacket, it is engineered specifically for harsh environments requiring direct burial or heavy mechanical protection.
Important: The LINK UFH9301RA combines a flexible round profile with robust steel armor protection, making it highly resistant to crushing, pulling strains, and outdoor hazards. It provides professional network installers with a reliable, secure solution for underground, conduit, and demanding last-mile FTTx routing.
