Specifications LINK UFH9302R
| Features | Description |
|---|---|
| Device Type | FTTH / FTTR Round 2-Core Fiber Optic Cable (Distribution Cable) |
| Brand / Series | LINK (Interlink) / FTTR / FTTH Round Distribution Solution |
| Fiber Type | Single-Mode Fiber (ITU-T G.657A2, Fully Compatible with G.652D) |
| Core Count | 2 Core (2C Structure) |
| Cable Construction | Round Profile Distribution Cable with Aramid Yarn Reinforcement |
| Jacket Material | Flame Retardant Low Smoke Zero Halogen (FR-LSZH, UV Stabilized) |
| Installation | Indoor and Outdoor Environmental Deployment (Distribution & Backbone Routing) |
| Packaging Length | Standard Reel / Box: 1,000 Meters / Reel |
| Application | FTTx, FTTR (Fiber to the Room) Systems, Passive Optical Networks (PON), Enterprise Networks |
| Fiber Standard | ITU-T G.657A2 Single-Mode (Superior Bend Insensitivity) |
|---|---|
| Buffer Structure | 900 $\mu$m and 600 $\mu$m Tight Buffer Coating Allowing Easy Connectorization and Strippability |
| Flame Rating | Meets IEC Standards for Non-Flame Propagation and Low Smoke Emission |
| Environmental Standards | RoHS Compliant |
| SMART FEATURES | |
|---|---|
| Round 2-Core Compact Design | Flexible, lightweight 2-core round structure optimized for smooth pulling, multi-channel routing, and tight conduit installations |
| Aramid Yarn Protection | Reinforced with high-strength aramid yarn for enhanced mechanical and tensile protection |
| Low Smoke Zero Halogen | LSZH outer sheath minimizes smoke density and eliminates toxic halogen gas emissions during fire hazards |
| Easy Termination | Optimized tight buffer coating ensures effortless stripping and reliable mechanical or fusion field-termination |
| GENERAL | |
|---|---|
| Core Diameter | Cladding 125 $\mu$m Single-Mode Core Structure |
| Color | Black / Standard Jacket Color |
| Warranty | Standard Manufacturer Warranty (Up to 30 Years System Link Warranty when installed under certified guidelines) |

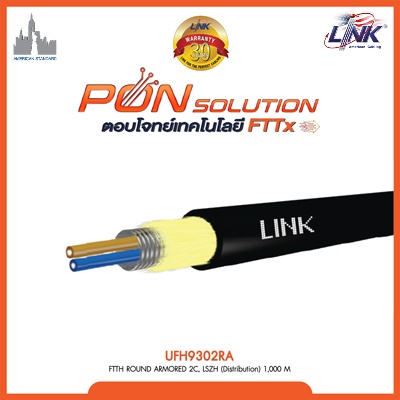

Note: The LINK UFH9302R is a 2-core single-mode round fiber optic distribution cable belonging to the FTTR/FTTH system line, supplied on a 1,000-meter reel. Utilizing bend-insensitive G.657A2 fiber, aramid yarn reinforcement, and an indoor/outdoor FR-LSZH jacket, it is engineered for high-performance multi-channel optical pathways and network distribution.
Important: The LINK UFH9302R features a lightweight, flexible round 2-core profile built for easy handling, pulling, and installation in restricted indoor conduits or outdoor risers. Its tight-buffer design allows clean and rapid field connectorization, making it a professional choice for modern FTTx and FTTR infrastructures requiring line redundancy.
