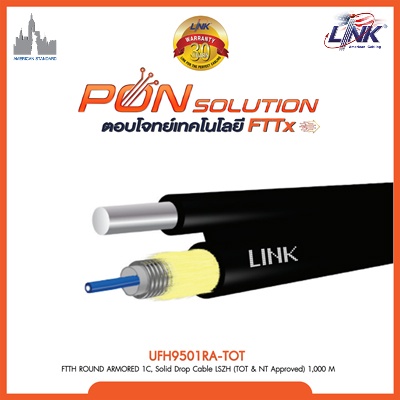

Specifications LINK UFH9501RA-TOT
| Features | Description |
|---|---|
| Device Type | FTTH / FTTx Round Armored 1-Core Solid Drop Cable (Self-Support Drop Cable) |
| Brand / Series | LINK (Interlink) / Round Armored FTTH Solution (TOT & NT Approved) |
| Fiber Type | Single-Mode Fiber (ITU-T G.657A1 / G.657A2 Bend-Insensitive, Fully Compatible with G.652D) |
| Core Count | 1 Core (1C Structure) |
| Cable Construction | Round Profile Armored Drop Cable with Flexible Stainless Steel Armor & Solid Messenger Wire |
| Jacket Material | Flame Retardant Low Smoke Zero Halogen (FR-LSZH, UV Stabilized Outer Sheath) |
| Installation | Outdoor Aerial Pole-to-Building, Underground Duct, Direct Burial, and Indoor Terminal Deployment |
| Packaging Length | Standard Reel / Box: 1,000 Meters / Reel |
| Application | FTTx, Last-Mile Official Public Telecommunication Drops, TOT & NT Infrastructure Network Deployments |
| Fiber Standard | ITU-T G.657A1 / G.657A2 Single-Mode (Superior Bend Insensitivity) |
|---|---|
| Armor Protection | Flexible Stainless Steel Tape Armor Layer Providing High Crush Resistance and Rodent Defense |
| Messenger Wire | Integrated Solid Steel Messenger Wire ($1.2 \pm 0.05$ mm) for Heavy Aerial Span Support |
| Compliance | Officially Approved by TOT and National Telecom (NT) Standards |
| SMART FEATURES | |
|---|---|
| TOT & NT Approved Armored Spec | Officially certified for state telecommunication projects, combining robust physical armor with high-grade structural compliance |
| Steel Tape Armor & Solid Wire | Equipped with inner stainless steel tape for crush/rodent protection and a solid messenger wire for extended aerial pole spans |
| Aramid Yarn Reinforcement | Reinforced internally with aramid yarn strength members to absorb high tensile pulling forces |
| Safe FR-LSZH Sheath | Low Smoke Zero Halogen outer jacket ensures public safety by reducing smoke emission and eliminating toxic halogen gases |
| GENERAL | |
|---|---|
| Core Diameter | Cladding 125 $\mu$m Single-Mode Core Structure |
| Color | Black (Weather-Resistant UV Shield) |
| Warranty | Standard Manufacturer Warranty (Up to 30 Years System Link Warranty when installed under certified guidelines) |
Note: The LINK UFH9501RA-TOT is a 1-core single-mode round armored self-support drop cable featuring an integrated solid steel messenger wire and stainless steel tape armor, supplied in a 1,000-meter reel. Officially approved by TOT and NT, it is engineered for heavy-duty last-mile public infrastructure drop lines requiring maximum physical protection.
Important: Tailored precisely to official national telecommunication specifications, the LINK UFH9501RA-TOT integrates aerial span suspension with complete rodent and crush resistance, making it the premier option for contractors deploying certified government and enterprise fiber lines.
