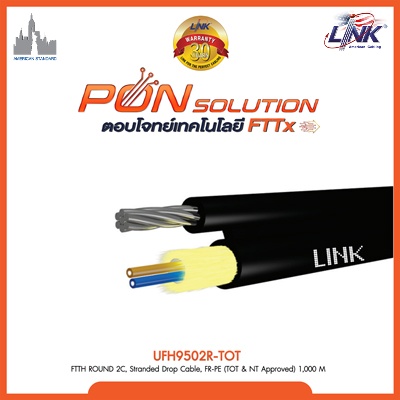

Specifications LINK UFH9502R-TOT
| Features | Description |
|---|---|
| Device Type | FTTH / FTTx Round Armored 2-Core Stranded Drop Cable (Self-Support Drop Cable) |
| Brand / Series | LINK (Interlink) / Round Self-Support FTTH Solution (TOT & NT Approved) |
| Fiber Type | Single-Mode Fiber (ITU-T G.657A2, Fully Compatible with G.652D) |
| Core Count | 2 Core (2C Structure) |
| Cable Construction | Round Profile Stranded Drop Cable with Integrated Stranded Messenger Wire ($7 \times 0.4$ mm) |
| Jacket Material | Flame Retardant Polyethylene (FR-PE, Outdoor UV-Resistant Sheath) |
| Installation | Outdoor Aerial Pole-to-Building, Duct, and Last-Mile Multi-Core Subscriber Drop Deployment |
| Packaging Length | Standard Reel / Box: 1,000 Meters / Reel |
| Application | FTTx, Last-Mile Multi-Core Aerial Subscriber Drops, TOT & NT Public Telecommunication Infrastructure Networks |
| Fiber Standard | ITU-T G.657A2 Single-Mode (Superior Bend Insensitivity) |
|---|---|
| Messenger Wire | Integrated Stranded Steel Messenger Wire ($7 \times 0.4$ mm, $\approx 1.2$ mm outer diameter) for Heavy Aerial Span Support |
| Flame Rating & Compliance | Meets TOT & NT Standards for Outdoor Non-Flame Propagation and Weather Durability |
| Environmental Standards | RoHS Compliant |
| SMART FEATURES | |
|---|---|
| TOT & NT Approved 2-Core Spec | Officially certified and specified for use in national multi-core telecommunication projects by TOT and National Telecom (NT) |
| Stranded Messenger Support | Features a high-strength stranded steel messenger wire built to handle long outdoor aerial pole spans and high tension loads for 2-core routing |
| Aramid Yarn Reinforcement | Protected internally with aramid yarn strength members to safeguard the dual fiber core against mechanical stress |
| Easy Termination Buffer | 900 $\mu$m and 600 $\mu$m tight buffer design allows smooth stripping and rapid field connectorization |
| GENERAL | |
|---|---|
| Core Diameter | Cladding 125 $\mu$m Single-Mode Core Structure |
| Color | Black (Weather-Resistant PE Outer Sheath) |
| Warranty | Standard Manufacturer Warranty (Up to 30 Years System Link Warranty when installed under certified guidelines) |
Note: The LINK UFH9502R-TOT is a 2-core single-mode round self-support drop cable featuring a robust FR-PE jacket and an integrated stranded messenger wire, supplied in a 1,000-meter reel. Fully approved by TOT and NT, it is engineered specifically for official last-mile multi-core aerial drop networks and rigorous outdoor telecommunication routes.
Important: Designed to meet strict state telecommunication specifications, the LINK UFH9502R-TOT combines a flexible 2-core round profile with superior aerial span strength, making it the trusted choice for contractors deploying official public fiber-optic lines and multi-service subscriber drop connections.
