Specifications LINK UFH9511M
| Features | Description |
|---|---|
| Device Type | FTTH Flat 1-Core Solid Drop Cable (Self-Support Drop Cable) |
| Brand / Series | LINK (Interlink) / Double-Q Series (Self-Support FTTH Solution) |
| Fiber Type | Single-Mode Fiber (ITU-T G.657A2, Fully Compatible with G.652D) |
| Core Count | 1 Core (1C Structure) |
| Cable Construction | Flat Profile Drop Cable with Integrated Solid Steel Messenger Wire (Self-Support) |
| Jacket Material | Flame Retardant Low Smoke Zero Halogen (FR-LSZH) with Weather-Resistant Outer Layer |
| Installation | Indoor and Outdoor Aerial / Duct / Surface-Mount Environmental Deployment |
| Packaging Length | Standard Box: 1,000 Meters / Box |
| Application | FTTx, Last-Mile Internet Access, FTTx Subscriber Drops, ISP & Enterprise Networks (TRUE Compatible / Approved Standard) |
| Fiber Standard | ITU-T G.657A2 Single-Mode (Superior Bend Insensitivity) |
|---|---|
| Flame Rating | Meets IEC 60332-1, IEC 60754-1 & 2, and IEC 61034-2 Standards (LSZH Non-Flame Propagation) |
| Environmental Standards | RoHS Compliant |
| Tensile Performance | High Tensile Strength Integrated Solid Steel Wire / Messenger for Aerial Span Support & FRP Strength Member |
| SMART FEATURES | |
|---|---|
| Self-Support Solid Design | Features an integrated solid steel messenger wire optimized for reliable exterior pole-to-building aerial drop spans |
| Low Smoke Zero Halogen | LSZH sheath ensures safety by minimizing smoke density and eliminating toxic halogen gases during fire incidents |
| Bend-Insensitive Performance | Built with G.657A2 optical fibers to accommodate tight indoor corner routing without macro-bending signal loss |
| Operator Certified Standard | Fully compatible and widely trusted across major Thai telecommunication operators (such as TRUE infrastructure guidelines) |
| GENERAL | |
|---|---|
| Core Diameter | Cladding 125$\mu$m Single-Mode Core Structure |
| Color | Black |
| Warranty | Standard Manufacturer Warranty (Up to 30 Years System Link Warranty when installed under certified guidelines) |

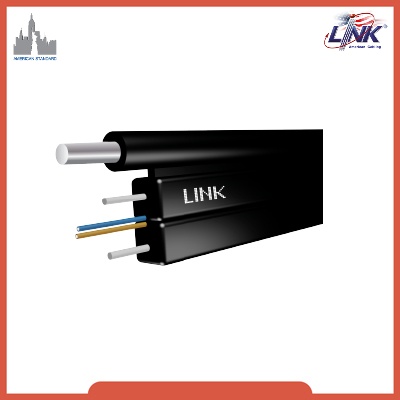

Note: The LINK UFH9511M is a 1-core single-mode flat drop fiber optic cable featuring an integrated self-support solid steel messenger wire, supplied in a 1,000-meter box. Utilizing bend-insensitive G.657A2 fiber and a safe LSZH jacket, it is engineered specifically for reliable outdoor-to-indoor aerial last-mile FTTx connections.
Important: The LINK UFH9511M cable combines solid structural aerial support with a flat, low-smoke profile configuration. It satisfies strict telecommunication compatibility standards, making it an exceptional choice for professional Internet Service Providers (ISPs) and network technicians executing subscriber drop installations.
