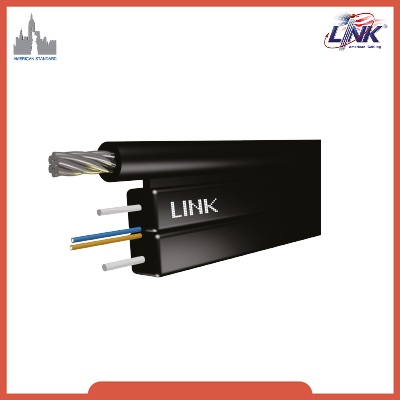

Specifications LINK UFH9524
| Features | Description |
|---|---|
| Device Type | FTTH Flat 4-Core Stranded Drop Cable (Self-Support Drop Cable) |
| Brand / Series | LINK (Interlink) / Double-Q Series (Self-Support FTTH Solution) |
| Fiber Type | Single-Mode Fiber (ITU-T G.657A2, Fully Compatible with G.652D) |
| Core Count | 4 Core (4C Structure) |
| Cable Construction | Flat Profile Drop Cable with Integrated Stranded Messenger Wire (Self-Support) |
| Jacket Material | Flame Retardant Low Smoke Zero Halogen (FR-LSZH) with Weather-Resistant Outer Layer |
| Installation | Indoor and Outdoor Aerial / Duct / Surface-Mount Environmental Deployment |
| Packaging Length | Standard Box: 1,000 Meters / Box |
| Application | FTTx, High-Capacity Last-Mile Internet Access, Multi-Core Subscriber Drops, ISP & Enterprise Networks |
| Fiber Standard | ITU-T G.657A2 Single-Mode (Superior Bend Insensitivity) |
|---|---|
| Flame Rating | Meets IEC 60332-1, IEC 60754-1 & 2, and IEC 61034-2 Standards (LSZH Non-Flame Propagation) |
| Environmental Standards | RoHS Compliant |
| Tensile Performance | High Tensile Strength Integrated Stranded Steel Wire / Messenger for Aerial Span Support |
| SMART FEATURES | |
|---|---|
| Self-Support Stranded Design | Features an attached messenger wire designed for direct aerial pole-to-building outdoor drop installations |
| Low Smoke Zero Halogen | LSZH sheath ensures safety by minimizing smoke density and eliminating toxic halogen gases during fire incidents |
| Bend-Insensitive Performance | Built with G.657A2 optical fibers to accommodate tight indoor corner routing without macro-bending signal loss |
| High-Capacity 4-Core Design | Provides 4 core capacity for increased data redundancy, multi-service routing, and heavy-duty subscriber connections |
| GENERAL | |
|---|---|
| Core Diameter | Cladding 125$\mu$m Single-Mode Core Structure |
| Color | Black |
| Warranty | Standard Manufacturer Warranty (Up to 30 Years System Link Warranty when installed under certified guidelines) |
Note: The LINK UFH9524 is a 4-core single-mode flat drop fiber optic cable equipped with an integrated self-support stranded messenger wire, supplied in a 1,000-meter box. Utilizing bend-insensitive G.657A2 fiber and a safe LSZH jacket, it is engineered specifically for reliable high-capacity outdoor-to-indoor aerial last-mile FTTx connections.
Important: The LINK UFH9524 cable combines structural aerial support with a 4-core flat low-smoke configuration. It satisfies strict telecommunication standards, making it an ideal choice for professional Internet Service Providers (ISPs) and network technicians executing advanced, multi-channel subscriber drop installations.
