Specifications LINK UFP420S01-1.5
| Features | Description |
|---|---|
| Product Type | LC / UPC Fiber Optic Pigtail |
| Fiber Type | Multimode OM3 |
| Fiber Structure | Simplex |
| Connector Type | LC / UPC |
| Fiber Size | 50/125 µm |
| Cable Diameter | 0.9 mm |
| Cable Length | 1.5 m |
| Cable Construction | 900 µm Buffered Fiber |
| Application | Fiber Optic Splicing, Data Communication, LAN, Data Center, CCTV, and Network Infrastructure |
| OPTICAL CHARACTERISTICS | Description |
|---|---|
| Fiber Standard | ITU-T G.651 / OM3 |
| Core Diameter | 50 µm |
| Cladding Diameter | 125 µm |
| Operating Wavelength | 850 nm and 1300 nm |
| Maximum Attenuation | ≤ 3.0 dB/km at 850 nm, ≤ 1.0 dB/km at 1300 nm |
| Minimum Effective Modal Bandwidth | 2000 MHz·km at 850 nm |
| MECHANICAL CHARACTERISTICS | Description |
|---|---|
| Ferrule Material | Zirconia Ceramic, Pre-Radiused |
| Minimum Bending Radius | 30 mm |
| Pulling Force | 200 N |
| Durability | ≥ 500 Cycles |
| Operating Temperature | -40°C to 85°C |
| Storage / Shipping Temperature | -40°C to 85°C |
| PERFORMANCE | Description |
|---|---|
| Typical Insertion Loss | ≤ 0.15 dB |
| Maximum Insertion Loss | ≤ 0.30 dB |
| Return Loss | ≥ 26 dB |
| STANDARDS & COMPLIANCE | Description |
|---|---|
| Standards | ANSI/TIA-568.3-D, ANSI/TIA-568.3-E, ITU-T G.651, ISO/IEC 11801, IEC 60793, and IEC 60794 |
| Connector Standard | TIA/EIA-604 and FOCIS 10 |
| Environmental Compliance | RoHS Compliant |
| Safety / Flame Rating | UL, FR-LSZH, OFNR |

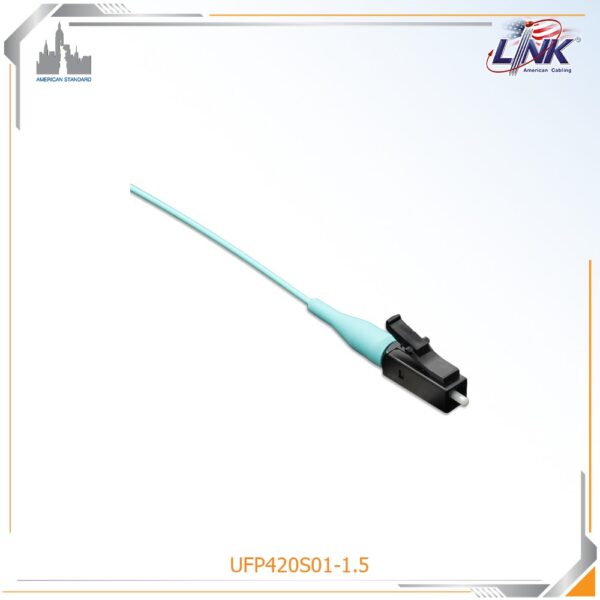

Note: The LINK UFP420S01-1.5 is an LC / UPC multimode OM3 simplex fiber optic pigtail with a 900 µm buffered fiber and 1.5-meter length. It is designed for fiber optic splicing and professional network infrastructure applications.
Important: The UFP420S01-1.5 features a zirconia ceramic pre-radiused ferrule, low insertion loss, high repeatability, and reliable optical performance. The pigtail is factory assembled and 100% tested for quality assurance.
