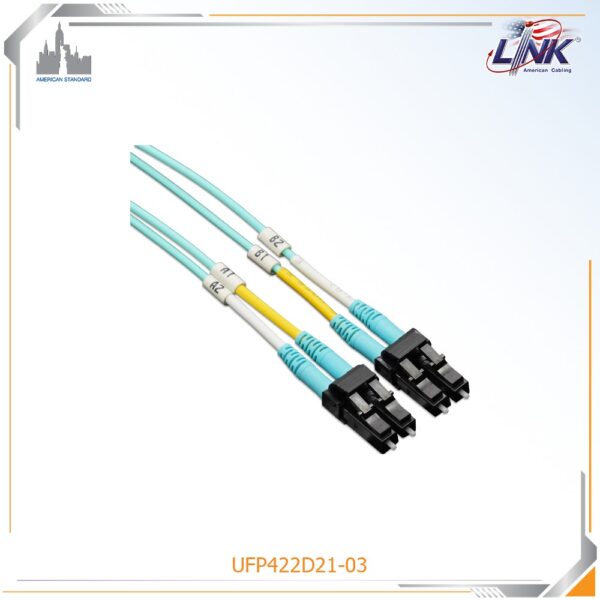

Specifications LINK UFP422D21-03
| Features | Description |
|---|---|
| Device Type | Fiber Optic Patch Cord (LC/UPC to LC/UPC) |
| Fiber Type | OM1 62.5/125μm Multi-Mode Fiber |
| Core Count | 2 Core (Duplex Structure) |
| Connector Types | LC Connector (Side A) to LC Connector (Side B) |
| Polish Type | UPC to UPC (Ultra Physical Contact) |
| Cable Construction | 2.0 mm Duplex Jacket |
| Jacket Material | Orange FR-LSZH (Flame Retardant Low Smoke Zero Halogen) / OFNR |
| Installation | Indoor Rack, Patch Panel, Equipment Cross-Connect |
| Water Protection | Indoor Non-Waterproof Structure |
| Strength Member | Aramid Yarn Reinforcement |
| Cable Length | 3.0 Meters |
| Application | Telecommunication Networks, Data Centers, Legacy Networks, Gigabit Ethernet |
| Fiber Standard | ITU-T G.651 OM1 Multi-Mode |
|---|---|
| Fiber Diameter | 62.5/125μm |
| Flame Rating | FR-LSZH & OFNR (UL-1666) |
| Insertion Loss | Typ. ≤ 0.15 dB (Max. ≤ 0.30 dB) |
| Return Loss | UPC ≥ 30 dB |
| Standards | ANSI/TIA/EIA-568-B.3/C.3, ISO/IEC 11801, ITU-T G.651, Telcordia GR-326-CORE, RoHS Compliant |
| Application | Gigabit Ethernet, 100M/10M Networks, FTTx, CATV, and Enterprise Networks |
| SMART FEATURES | |
|---|---|
| LC to LC Configuration | Precision Factory-Terminated LC/UPC and LC/UPC Connectors for Reliable Duplex Interfacing |
| Low Insertion Loss | High-Grade Zirconia Ceramic Ferrules Ensure Minimal Signal Attenuation and High Repeatability |
| Flame Retardant LSZH Jacket | Orange FR-LSZH Sheath Minimizes Smoke and Halogen-Free Toxic Gas Emission During Fire |
| Factory Tested | 100% Factory Assembled and Tested for Insertion Loss and Return Loss Performance |
| High-Speed Network Support | Supports Standard Legacy and Gigabit Ethernet Network Infrastructure |
| GENERAL | |
|---|---|
| Fiber Count | 2 Core (Duplex) |
| Cable Diameter | 2.0 mm Duplex Profile |
| Maximum Tensile Load | 200N |
| Minimum Bending Radius | 30 mm |
| Operating / Storage Temperature | -40°C to +85°C |
| Length | 3.0 Meters |
| Warranty | 30 Years |
Note: The LINK UFP422D21-03 is a 3-meter OM1 62.5/125μm multimode duplex fiber optic patch cord featuring LC/UPC to LC/UPC connectors and a 2.0mm orange FR-LSZH jacket. Factory-terminated and 100% tested for optimal performance, it delivers low insertion loss and high return loss. The cable complies with international TIA/EIA, ISO/IEC, and ITU-T standards, making it ideal for safe, legacy data center rack connections, distribution frames, and enterprise telecommunication networks.
Important: The LINK UFP422D21-03 is a 3-meter OM1 (62.5/125μm) multimode duplex patch cord equipped with LC/UPC and LC/UPC connectors, a 2.0mm orange FR-LSZH flame-retardant safety jacket, and high-precision zirconia ceramic ferrules. It supports legacy and Gigabit network applications and is ideal for professional indoor optical patching, equipment jumper links, and reliable fiber optic infrastructure routing.
