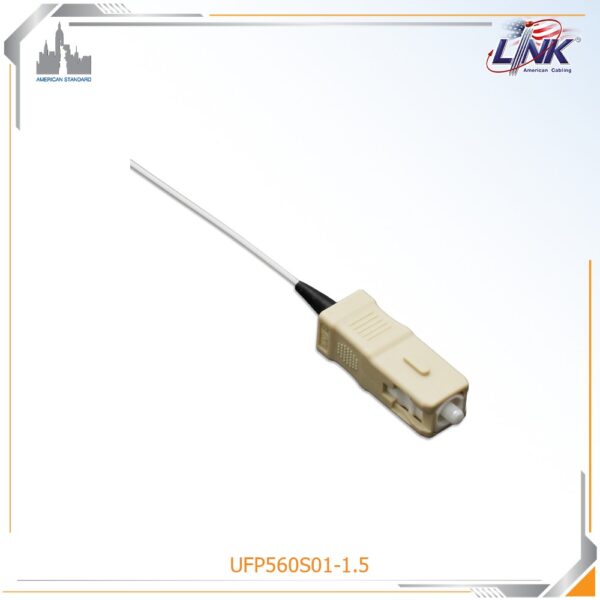

Specifications LINK UFP560S01-1.5
| Features | Description |
|---|---|
| Product Type | SC / UPC Fiber Optic Pigtail |
| Fiber Type | Multimode OM2 |
| Fiber Structure | Simplex |
| Connector Type | SC / UPC |
| Fiber Size | 50/125 µm |
| Cable Diameter | 0.9 mm |
| Cable Length | 1.5 m |
| Jacket Type | 900 µm Buffer |
| Application | Fiber Optic Splicing, Data Communication, LAN, CCTV, and Network Infrastructure |
| OPTICAL CHARACTERISTICS | Description |
|---|---|
| Fiber Standard | ITU-T G.651 / OM2 |
| Core Diameter | 50 µm |
| Cladding Diameter | 125 µm |
| Operating Wavelength | 850 nm and 1300 nm |
| Maximum Attenuation | ≤ 3.5 dB/km at 850 nm, ≤ 1.5 dB/km at 1300 nm |
| Minimum Bandwidth | 500 MHz·km at 850 nm, 500 MHz·km at 1300 nm |
| MECHANICAL CHARACTERISTICS | Description |
|---|---|
| Cable Construction | 900 µm Buffered Fiber |
| Minimum Bending Radius | 30 mm |
| Connector Ferrule | Zirconia Ceramic, Pre-Radiused |
| Connector Type | SC / UPC |
| Durability | 500 Cycles |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 85°C |
| STANDARDS & COMPLIANCE | Description |
|---|---|
| Standards | ANSI/TIA-568.3-D, ISO/IEC 11801, IEC 60793, and IEC 60794 |
| Connector Standard | TIA/EIA-604 and FOCIS 2 |
| Environmental Compliance | RoHS Compliant |
| Safety / Flame Rating | UL, FR-LSZH, OFNR |
Note: The LINK UFP560S01-1.5 is an SC / UPC multimode OM2 simplex fiber optic pigtail with a 900 µm buffered fiber and 1.5-meter length. It is designed for fiber optic splicing and multimode network infrastructure applications.
Important: The UFP560S01-1.5 uses a zirconia ceramic pre-radiused ferrule and supports reliable optical connectivity for professional fiber optic installations. The pigtail is factory assembled and tested for quality assurance.
