Specifications LINK UFP940S21-1.5
| Features | Description |
|---|---|
| Product Type | ST / UPC Fiber Optic Pigtail |
| Fiber Type | Single-Mode OS2 |
| Fiber Structure | Simplex |
| Connector Type | ST / UPC |
| Fiber Size | 9/125 µm |
| Cable Diameter | 2.0 mm |
| Cable Length | 1.5 m |
| Jacket Material | FR-LSZH |
| Application | Fiber Optic Splicing, FTTx, Data Communication, CCTV, CATV, and Network Infrastructure |
| OPTICAL CHARACTERISTICS | Description |
|---|---|
| Fiber Standard | ITU-T G.652D / OS2 |
| Maximum Attenuation | ≤ 0.35 dB/km at 1310 nm, ≤ 0.21 dB/km at 1550 nm |
| Operating Wavelength | 1310 nm and 1550 nm |
| MECHANICAL CHARACTERISTICS | Description |
|---|---|
| Cable Construction | 2.0 mm Jacketed Fiber Optic Cable |
| Minimum Bending Radius | 30 mm |
| Connector Ferrule | Zirconia Ceramic |
| Connector Type | ST / UPC |
| STANDARDS & COMPLIANCE | Description |
|---|---|
| Standards | ANSI/TIA-568-C.3, EIA-568-B.3, ICEA 696, 596, FOTP EIA/TIA-455, ITU-T G.652D, ISO/IEC 11801, IEC 60793, and IEC 60794 |
| Connector Standard | TIA/EIA-604 and FOCIS 2 |
| Environmental Compliance | RoHS Compliant |
| Safety / Flame Rating | UL, FR-LSZH, OFNR |

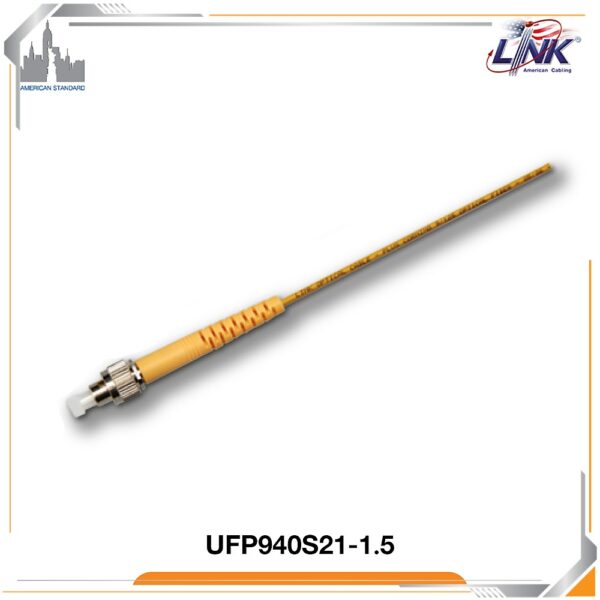

Note: The LINK UFP940S21-1.5 is an ST / UPC single-mode OS2 simplex fiber optic pigtail with a 2.0 mm jacket and 1.5-meter length. It is designed for fiber optic splicing and network infrastructure applications.
Important: The UFP940S21-1.5 uses a durable 2.0 mm jacketed fiber construction and is suitable for professional fiber optic installation, splicing, and telecommunication applications.
