Specifications LINK UFP946D21-03
| Features | Description |
|---|---|
| Product Type | Fiber Optic Patch Cord |
| Fiber Type | OS2 Single-Mode |
| Fiber Size | 9/125 µm |
| Cable Type | Duplex |
| Connector Type | ST/UPC – SC/UPC |
| Polish Type | UPC – UPC |
| Cable Diameter | 2.0 mm |
| Length | 3 m |
| Fiber Standard | ITU-T G.652D / G.657A1 |
| Jacket | FR-LSZH / OFNR |
| Standard | ANSI/TIA-568.3-E / ANSI/TIA-568.3-D / ISO/IEC 11801:2017 |
| Compliance | RoHS |
| Application | Fiber Optic Network / SFP / Switch / Media Converter / Patch Panel |
| FIBER OPTIC SPECIFICATION | |
|---|---|
| Fiber Type | OS2 Single-Mode |
| Core / Cladding | 9/125 µm |
| Fiber Standard | ITU-T G.652D / G.657A1 |
| Cable Type | Duplex |
| CONNECTOR SPECIFICATION | |
|---|---|
| Connector A | ST/UPC |
| Connector B | SC/UPC |
| Polish Type | UPC – UPC |
| Configuration | ST to SC |
| CABLE SPECIFICATION | |
|---|---|
| Cable Diameter | 2.0 mm |
| Length | 3 m |
| Construction | Duplex Patch Cord |
| Jacket | FR-LSZH / OFNR |
| STANDARDS & COMPLIANCE | |
|---|---|
| Standards | ANSI/TIA-568.3-E / ANSI/TIA-568.3-D / ISO/IEC 11801:2017 |
| Fiber Standards | ITU-T G.652D / G.657A1 |
| Compliance | RoHS |
| APPLICATION | |
|---|---|
| Network Equipment | Fiber Switch / SFP / Media Converter |
| Patch Panel | Fiber Optic Patch Panel Connection |
| Enterprise Network | Single-Mode Fiber Infrastructure |
| FTTx | Fiber Access Network Connectivity |
| CCTV | Fiber Optic CCTV Network |

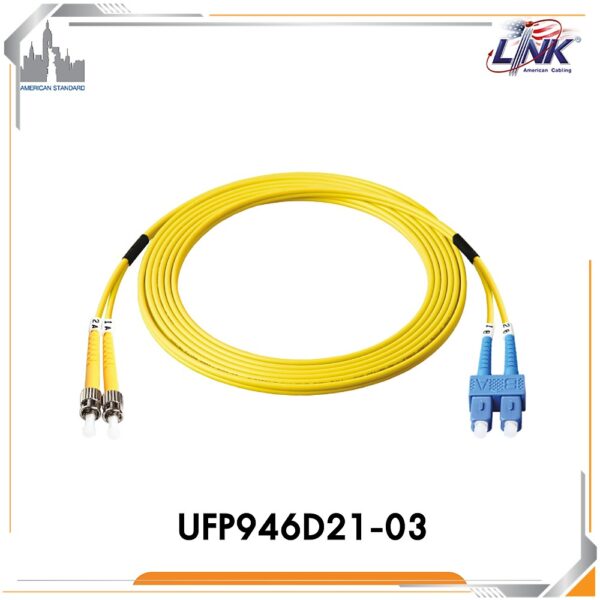

Note: The LINK UFP946D21-03 is a 3-meter ST/UPC to SC/UPC Duplex Fiber Optic Patch Cord using OS2 9/125 µm Single-Mode fiber with a 2.0 mm FR-LSZH / OFNR jacket. It is suitable for connecting fiber switches, SFP modules, media converters, patch panels and other fiber optic network equipment.
