Specifications LINK UFP946D31-03
| Features | Description |
|---|---|
| Product Type | Fiber Optic Patch Cord |
| Fiber Type | OS2 Single-Mode |
| Fiber Size | 9/125 µm |
| Cable Type | Duplex |
| Connector Type | ST/UPC – SC/UPC |
| Polish Type | UPC – UPC |
| Cable Diameter | 3.0 mm |
| Length | 3 m |
| Jacket | FR-LSZH / OFNR |
| Fiber Standard | ITU-T G.652D |
| Compliance | RoHS / UL |
| Application | Fiber Optic Network / SFP / Switch / Media Converter / Patch Panel |
| FIBER OPTIC SPECIFICATION | |
|---|---|
| Fiber Type | OS2 Single-Mode |
| Core / Cladding | 9/125 µm |
| Fiber Standard | ITU-T G.652D |
| Cable Type | Duplex |
| Attenuation | ≤ 0.35 dB/km @ 1310 nm / ≤ 0.21 dB/km @ 1550 nm |
| CONNECTOR SPECIFICATION | |
|---|---|
| Connector A | ST/UPC |
| Connector B | SC/UPC |
| Polish Type | UPC – UPC |
| Ferrule Material | Zirconia Ceramic |
| Configuration | ST to SC |
| CABLE SPECIFICATION | |
|---|---|
| Cable Diameter | 3.0 mm |
| Length | 3 m |
| Jacket | FR-LSZH / OFNR |
| Pulling Force | 200 N |
| Minimum Bending Radius | 30 mm |
| APPLICATION | |
|---|---|
| Network Equipment | Fiber Switch / SFP / Media Converter |
| Patch Panel | Fiber Optic Patch Panel Connection |
| Enterprise Network | Single-Mode Fiber Infrastructure |
| FTTx | Fiber Access Network Connectivity |
| CCTV | Fiber Optic CCTV Network |

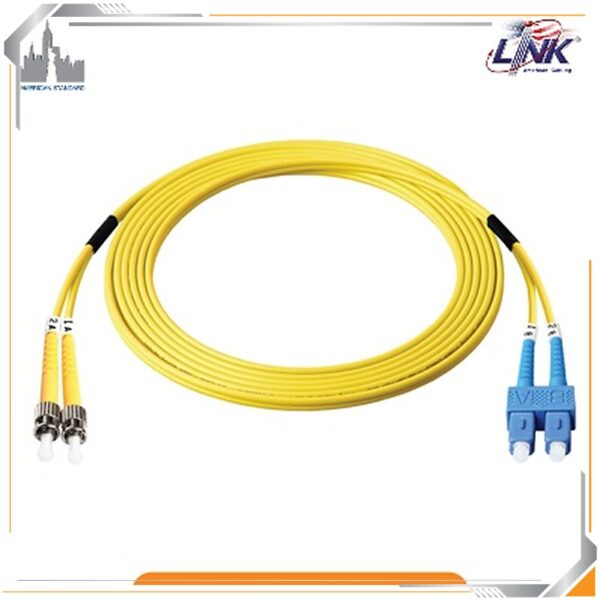

Note: The LINK UFP946D31-03 is a 3-meter ST/UPC to SC/UPC Duplex Fiber Optic Patch Cord using OS2 9/125 µm Single-Mode fiber with a 3.0 mm FR-LSZH / OFNR jacket. It is suitable for connecting SFP modules, fiber switches, media converters, patch panels and other fiber optic network equipment.
