Specifications LINK UFP948D31-03
| Features | Description |
|---|---|
| Product Type | Fiber Optic Patch Cord |
| Fiber Type | OS2 Single-Mode |
| Fiber Size | 9/125 µm |
| Cable Type | Duplex |
| Connector Type | ST/UPC – FC/UPC |
| Polish Type | UPC – UPC |
| Cable Diameter | 3.0 mm |
| Length | 3 m |
| Jacket | FR-LSZH / OFNR |
| Fiber Standard | ITU-T G.652D |
| Standard | ANSI/TIA-568.3 / ISO/IEC 11801 |
| Compliance | RoHS |
| Application | Fiber Optic Network / SFP / Switch / Media Converter / Patch Panel |
| FIBER OPTIC SPECIFICATION | |
|---|---|
| Fiber Type | OS2 Single-Mode |
| Core / Cladding | 9/125 µm |
| Fiber Standard | ITU-T G.652D |
| Cable Type | Duplex |
| CONNECTOR SPECIFICATION | |
|---|---|
| Connector A | ST/UPC |
| Connector B | FC/UPC |
| Polish Type | UPC – UPC |
| Configuration | ST to FC |
| CABLE SPECIFICATION | |
|---|---|
| Cable Diameter | 3.0 mm |
| Length | 3 m |
| Construction | Duplex Patch Cord |
| Jacket | FR-LSZH / OFNR |
| PERFORMANCE | |
|---|---|
| Insertion Loss | Low Insertion Loss |
| Return Loss | High Return Loss |
| Testing | 100% Factory Tested |
| Repeatability | High Repeatability |
| Exchangeability | High Exchangeability |
| APPLICATION | |
|---|---|
| Network Equipment | Fiber Switch / SFP / Media Converter |
| Patch Panel | Fiber Optic Patch Panel Connection |
| Enterprise Network | Single-Mode Fiber Infrastructure |
| Ethernet | Fast Ethernet / Gigabit Ethernet / 10G Ethernet |
| Other Applications | FDDI / Fiber Channel / ATM |

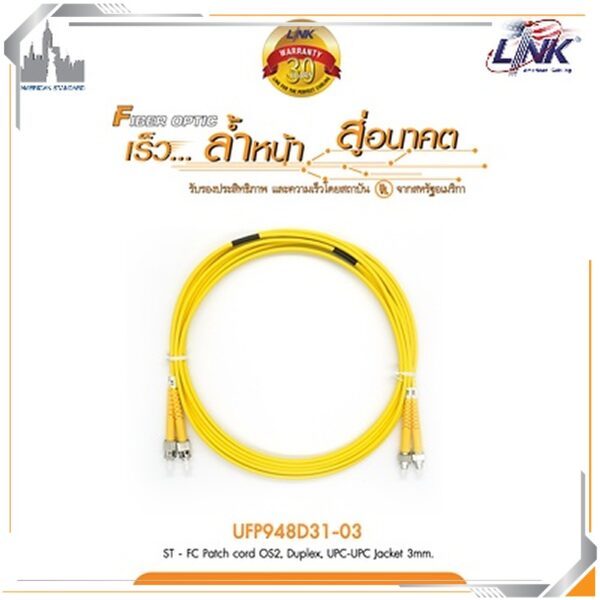

Note: The LINK UFP948D31-03 is a 3-meter ST/UPC to FC/UPC Duplex Fiber Optic Patch Cord using OS2 9/125 µm Single-Mode fiber with a 3.0 mm jacket. It is suitable for connecting fiber modules, switches, media converters, patch panels and other fiber optic network equipment.
