Specifications LINK UFP962D31-03
| Features | Description |
|---|---|
| Product Type | Fiber Optic Patch Cord |
| Fiber Type | OS2 Single-Mode |
| Fiber Size | 9/125 µm |
| Cable Type | Duplex |
| Connector Type | SC/UPC – LC/UPC |
| Polish Type | UPC – UPC |
| Cable Diameter | 3.0 mm |
| Length | 3 m |
| Fiber Standard | ITU-T G.652D |
| Application | Fiber Optic Network / SFP / Switch / Media Converter / Patch Panel |
| FIBER OPTIC SPECIFICATION | |
|---|---|
| Fiber Type | OS2 Single-Mode |
| Core / Cladding | 9/125 µm |
| Fiber Standard | ITU-T G.652D |
| Cable Type | Duplex |
| CONNECTOR SPECIFICATION | |
|---|---|
| Connector A | SC/UPC |
| Connector B | LC/UPC |
| Polish Type | UPC – UPC |
| Configuration | SC to LC |
| CABLE SPECIFICATION | |
|---|---|
| Cable Diameter | 3.0 mm |
| Length | 3 m |
| Construction | Duplex Patch Cord |
| Jacket | 3.0 mm Jacket |
| OPTICAL PERFORMANCE | |
|---|---|
| Insertion Loss | Typ. ≤ 0.15 dB / Max. ≤ 0.30 dB |
| Return Loss | ≥ 50 dB |
| Durability | ≥ 500 Mating Cycles |
| APPLICATION | |
|---|---|
| Network Equipment | Fiber Switch / SFP / Media Converter |
| Patch Panel | Fiber Optic Patch Panel Connection |
| Enterprise Network | Single-Mode Fiber Infrastructure |
| FTTx | Fiber Access Network Connectivity |
| CCTV | Fiber Optic CCTV Network |

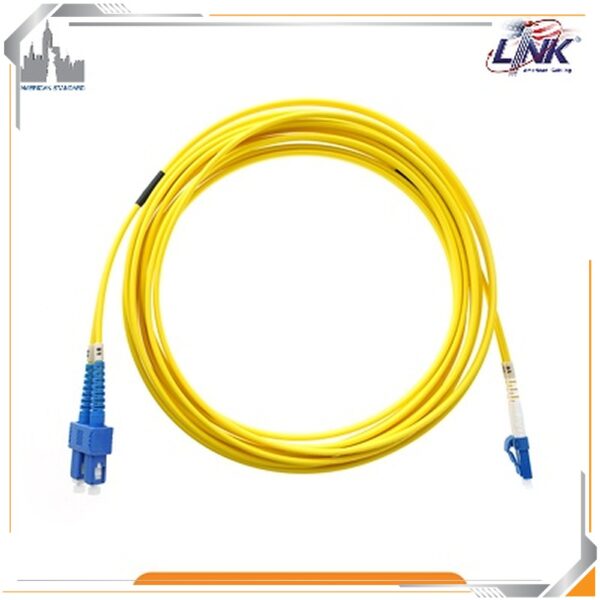

Note: The LINK UFP962D31-03 is a 3-meter SC/UPC to LC/UPC Duplex Fiber Optic Patch Cord using OS2 9/125 µm Single-Mode fiber with a 3.0 mm jacket. It is suitable for connecting fiber patch panels, SFP modules, fiber switches, media converters and other fiber optic network equipment.
