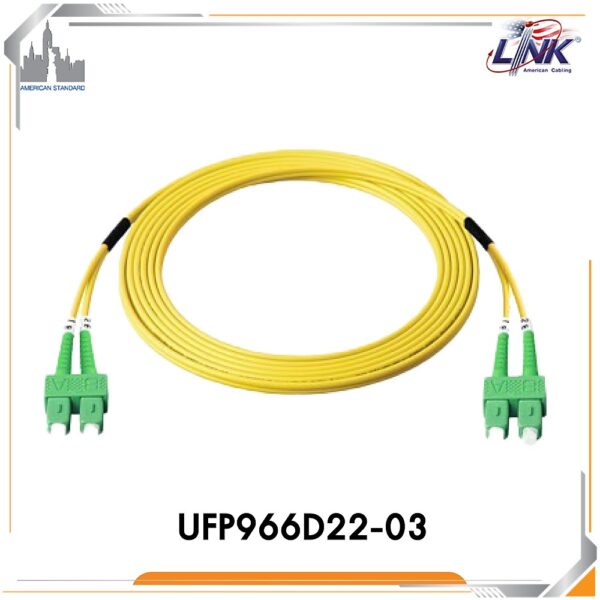

Specifications LINK UFP966D22-03
| Features | Description |
|---|---|
| Product Type | Fiber Optic Patch Cord |
| Fiber Type | OS2 Single-Mode |
| Fiber Size | 9/125 µm |
| Cable Type | Duplex |
| Connector Type | SC/APC – SC/APC |
| Polish Type | APC – APC |
| Cable Diameter | 2.0 mm |
| Length | 3 m |
| Application | Fiber Optic Network / SFP / Switch / Media Converter / Patch Panel |
| FIBER OPTIC SPECIFICATION | |
|---|---|
| Fiber Type | OS2 Single-Mode |
| Core / Cladding | 9/125 µm |
| Fiber Standard | ITU-T G.652D / G.657A1 |
| Cable Type | Duplex |
| CONNECTOR SPECIFICATION | |
|---|---|
| Connector A | SC/APC |
| Connector B | SC/APC |
| Polish Type | APC – APC |
| Connector Configuration | SC to SC |
| CABLE SPECIFICATION | |
|---|---|
| Cable Diameter | 2.0 mm |
| Length | 3 m |
| Construction | Duplex Patch Cord |
| Jacket | FR-LSZH |
| STANDARDS & COMPLIANCE | |
|---|---|
| Standards | ANSI/TIA-568.3-D / ISO/IEC 11801:2017 |
| Fiber Standards | ITU-T G.652D / G.657A1 |
| Compliance | RoHS |
| APPLICATION | |
|---|---|
| Network Equipment | Fiber Switch / SFP / Media Converter |
| Patch Panel | Fiber Optic Patch Panel Connection |
| FTTx | Fiber Access Network Connectivity |
| CCTV | Fiber Optic CCTV Network |
| Enterprise Network | Single-Mode Fiber Infrastructure |
Note: The LINK UFP966D22-03 is a 3-meter SC/APC to SC/APC Duplex Fiber Optic Patch Cord using OS2 9/125 µm Single-Mode fiber with a 2.0 mm jacket. It is suitable for connecting fiber optic equipment, SFP modules, switches, media converters and fiber patch panels.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ่อมกล้องวงจรปิด พัทยา ชลบุรี
