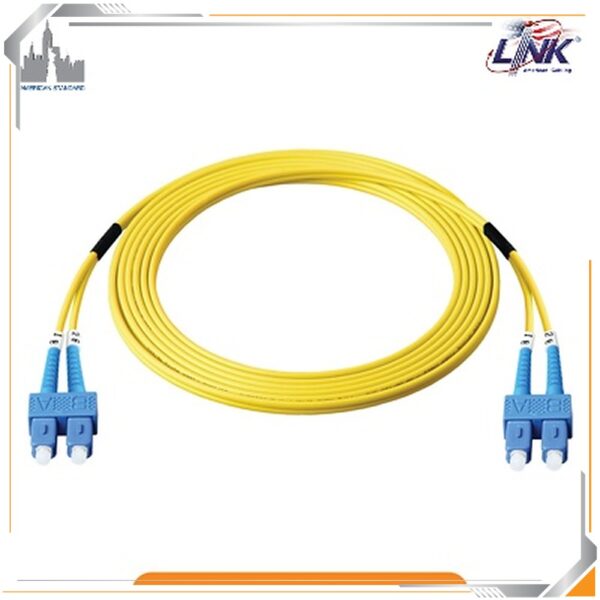

Specifications LINK UFP966D31-03
| Features | Description |
|---|---|
| Product Type | Fiber Optic Patch Cord |
| Fiber Type | OS2 Single-Mode |
| Fiber Size | 9/125 µm |
| Cable Type | Duplex |
| Connector Type | SC/UPC – SC/UPC |
| Polish Type | UPC – UPC |
| Cable Diameter | 3.0 mm |
| Length | 3 m |
| Jacket | FR-LSZH |
| Fiber Standard | ITU-T G.652D / G.657A1 |
| Application | Fiber Optic Network / SFP / Switch / Media Converter / Patch Panel |
| FIBER OPTIC SPECIFICATION | |
|---|---|
| Fiber Type | OS2 Single-Mode |
| Core / Cladding | 9/125 µm |
| Fiber Standard | ITU-T G.652D / G.657A1 |
| Cable Type | Duplex |
| CONNECTOR SPECIFICATION | |
|---|---|
| Connector A | SC/UPC |
| Connector B | SC/UPC |
| Polish Type | UPC – UPC |
| Connector Configuration | SC to SC |
| CABLE SPECIFICATION | |
|---|---|
| Cable Diameter | 3.0 mm |
| Length | 3 m |
| Construction | Duplex Patch Cord |
| Jacket | FR-LSZH |
| STANDARDS & COMPLIANCE | |
|---|---|
| Standards | ANSI/TIA-568.3-D / ISO/IEC 11801:2017 |
| Fiber Standards | ITU-T G.652D / G.657A1 |
| Other Standards | IEC 60793 / IEC 60794 / IEC 60332-1-2 / IEC 61034-2 / IEC 60754-2 |
| Compliance | RoHS |
| APPLICATION | |
|---|---|
| Network Equipment | Fiber Switch / SFP / Media Converter |
| Patch Panel | Fiber Optic Patch Panel Connection |
| Ethernet | Gigabit / 10G / 25G / 40G / 100G / 200G / 400G Ethernet |
| Other Applications | FTTx / CATV / CCTV / Fiber Channel |
Note: The LINK UFP966D31-03 is a 3-meter SC/UPC to SC/UPC Duplex Fiber Optic Patch Cord using OS2 9/125 µm Single-Mode fiber with a 3.0 mm FR-LSZH jacket. It is factory assembled and 100% tested, providing reliable connectivity for fiber switches, SFP modules, media converters, patch panels and high-speed Ethernet networks.
