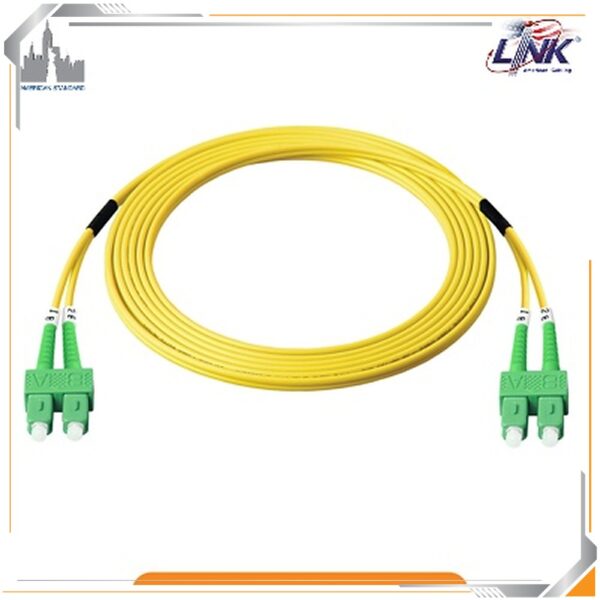

Specifications LINK UFP966D32-03
| Features | Description |
|---|---|
| Product Type | Fiber Optic Patch Cord |
| Fiber Type | OS2 Single-Mode |
| Fiber Size | 9/125 µm |
| Cable Type | Duplex |
| Connector Type | SC/APC – SC/APC |
| Polish Type | APC – APC |
| Cable Diameter | 3.0 mm |
| Length | 3 m |
| Jacket | FR-LSZH / OFNR |
| Application | Fiber Optic Network / SFP / Switch / Media Converter / Patch Panel |
| FIBER OPTIC SPECIFICATION | |
|---|---|
| Fiber Type | OS2 Single-Mode |
| Core / Cladding | 9/125 µm |
| Cable Type | Duplex |
| CONNECTOR SPECIFICATION | |
|---|---|
| Connector A | SC/APC |
| Connector B | SC/APC |
| Polish Type | APC – APC |
| Ferrule | Zirconia Ceramic, Pre-radiused |
| CABLE SPECIFICATION | |
|---|---|
| Cable Diameter | 3.0 mm |
| Length | 3 m |
| Construction | Duplex Patch Cord |
| Jacket | FR-LSZH and OFNR |
| Strength Member | Aramid Yarns |
| Minimum Bending Radius | 30 mm |
| Pulling Force | 200 N |
| OPTICAL PERFORMANCE | |
|---|---|
| Insertion Loss | Typ. ≤ 0.15 dB / Max. ≤ 0.30 dB |
| Return Loss – APC | ≥ 60 dB |
| Durability | ≥ 500 Mating Cycles |
| Operating Temperature | -40°C to +85°C |
| Storage / Shipping Temperature | -40°C to +85°C |
| APPLICATION | |
|---|---|
| Network Equipment | Fiber Switch / SFP / Media Converter |
| Patch Panel | Fiber Optic Patch Panel Connection |
| FTTx | Fiber Access Network Connectivity |
| CCTV | Fiber Optic CCTV Network |
| Enterprise Network | Single-Mode Fiber Infrastructure |
Note: The LINK UFP966D32-03 is a 3-meter SC/APC to SC/APC Duplex Fiber Optic Patch Cord using OS2 9/125 µm Single-Mode fiber with a 3.0 mm FR-LSZH / OFNR jacket. It features APC-APC connectors, aramid yarn reinforcement, and is suitable for connecting fiber switches, SFP modules, media converters and fiber patch panels.
