Specifications LINK UFP966S22-03
| Features | Description |
|---|---|
| Product Type | Fiber Optic Patch Cord |
| Fiber Type | OS2 Single-Mode |
| Fiber Size | 9/125 µm |
| Cable Type | Simplex |
| Connector Type | SC/APC – SC/APC |
| Polish Type | APC – APC |
| Cable Diameter | 2.0 mm |
| Length | 3 m |
| Fiber Standard | ITU-T G.652D |
| Application | Fiber Optic Network / Patch Panel / Switch / SFP / Media Converter |
| FIBER OPTIC SPECIFICATION | |
|---|---|
| Fiber Type | OS2 Single-Mode |
| Core / Cladding | 9/125 µm |
| Fiber Standard | ITU-T G.652D |
| Cable Type | Simplex |
| CONNECTOR SPECIFICATION | |
|---|---|
| Connector A | SC/APC |
| Connector B | SC/APC |
| Polish Type | APC – APC |
| Connector Configuration | SC to SC |
| CABLE SPECIFICATION | |
|---|---|
| Cable Diameter | 2.0 mm |
| Length | 3 m |
| Construction | Simplex Patch Cord |
| Jacket | 2.0 mm |
| APPLICATION | |
|---|---|
| Patch Panel | Fiber Patch Panel Connection |
| Network Equipment | Fiber Switch / SFP / Media Converter |
| FTTH / FTTR | Single-Mode Fiber Connectivity |
| Enterprise Network | Fiber Optic Network Infrastructure |

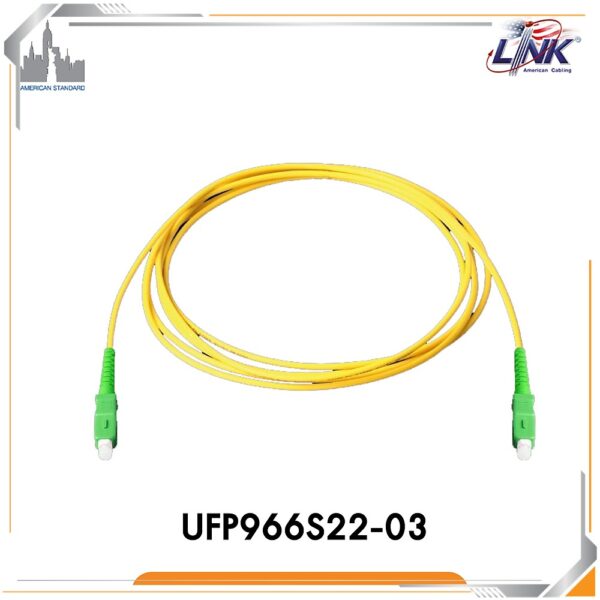

Note: The LINK UFP966S22-03 is a 3-meter SC/APC to SC/APC Simplex Fiber Optic Patch Cord using OS2 9/125 µm Single-Mode fiber with a 2.0 mm jacket. It is suitable for connecting fiber optic equipment, patch panels, switches, SFP modules and media converters.
