Specifications LINK UFP980S31-1.5
| Features | Description |
|---|---|
| Product Type | FC / UPC Fiber Optic Pigtail |
| Fiber Type | Single-Mode OS2 |
| Fiber Structure | Simplex |
| Connector Type | FC / UPC |
| Fiber Size | 9/125 µm |
| Cable Diameter | 3.0 mm |
| Cable Length | 1.5 m |
| Jacket Material | FR-LSZH |
| Ferrule Material | Zirconia Ceramic |
| Application | Fiber Optic Splicing, FTTx, Data Communication, CCTV, CATV, and Network Infrastructure |
| OPTICAL CHARACTERISTICS | Description |
|---|---|
| Fiber Standard | ITU-T G.652D / OS2 |
| Core Diameter | 9.2 ± 0.4 µm at 1310 nm |
| Mode Field Diameter | 9.2 ± 0.4 µm at 1310 nm, 10.4 ± 0.5 µm at 1550 nm |
| Cladding Diameter | 125 ± 0.7 µm |
| Maximum Attenuation | ≤ 0.35 dB/km at 1310 nm, ≤ 0.21 dB/km at 1550 nm |
| Typical Attenuation | ≤ 0.33 dB/km at 1310 nm, ≤ 0.19 dB/km at 1550 nm |
| Zero Dispersion Wavelength | 1300 to 1324 nm |
| Numerical Aperture | 0.130 ± 0.010 |
| Proof Test Stress | 100 Kpsi |
| MECHANICAL CHARACTERISTICS | Description |
|---|---|
| Pulling Force | 200 N |
| Minimum Bending Radius | 30 mm |
| Primary Coating Diameter | 242 ± 5 µm |
| Secondary Coating Diameter | 250 ± 5 µm |
| Cladding Non-Circularity | ≤ 0.7% |
| Core/Cladding Concentricity Error | ≤ 0.5 µm |
| Coating/Cladding Concentricity Error | ≤ 12 µm |
| STANDARDS & COMPLIANCE | Description |
|---|---|
| Standards | ANSI/TIA-568.3-D, ISO/IEC 11801:2017, IEC 60793, and IEC 60794 |
| Connector Standard | TIA/EIA-604 and FOCIS 2 |
| Environmental Compliance | RoHS Compliant |
| Safety / Flame Rating | UL, FR-LSZH, OFNR |

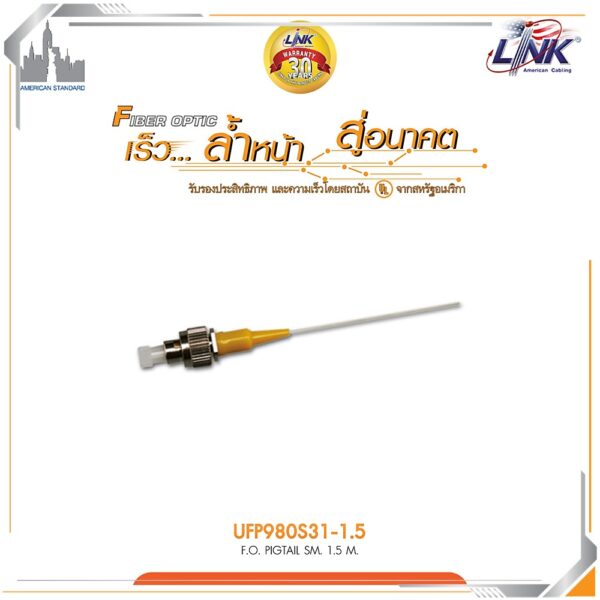

Note: The LINK UFP980S31-1.5 is an FC / UPC single-mode OS2 simplex fiber optic pigtail with a 3.0 mm jacket and 1.5-meter length. It is designed for fiber optic splicing and professional network infrastructure applications.
Important: The UFP980S31-1.5 features a durable 3.0 mm jacket for added mechanical protection. It uses a zirconia ceramic ferrule and provides low insertion loss, high return loss, good repeatability, and reliable exchangeability.
