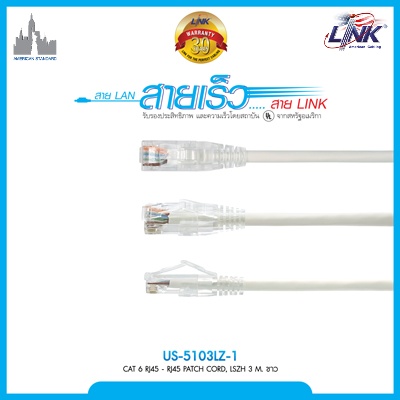

Specifications LINK US-5103LZ-1
| Features | Description |
|---|---|
| Device Type | CAT 6 UTP RJ45-RJ45 Factory-Terminated Patch Cord |
| Brand / Series | LINK (Interlink) / LAN (UTP) System |
| Standard / Category | Category 6 (CAT 6 UTP) – Supports up to 10 Gbps Ethernet |
| Conductor Material | 24 AWG Stranded Copper Wire (Strain Wire) for High Flexibility |
| Jacket Material | Flame-Retardant Low Smoke Zero Halogen (FR-LSZH) |
| Connector Type | High-Performance Modular RJ45 Plugs on Both Ends with Molded Boot Protection |
| Cable Length | 3.0 Meters |
| Color | White |
| Application | Network Switch-to-Device Patching, Patch Panels, Workstations, and Enterprise LAN Environments |
| Performance Standard | ANSI/TIA-568-C.2, ISO/IEC 11801, and EN 50173-1 Compliant |
|---|---|
| Power over Ethernet | Supports PoE and PoE+ (IEEE 802.3af / 802.3at) Applications |
| Environmental Standard | RoHS Compliant & Lead-Free Construction |
| Flame Rating | Meets IEC Standards for Non-Flame Propagation and Low Smoke Emission (LSZH) |
| SMART FEATURES | |
|---|---|
| Low Smoke Zero Halogen (LSZH) | Jacket material designed for public safety; emits minimal smoke and zero toxic halogen gases during a fire hazard |
| Stranded Conductor Flexibility | Built with stranded copper wire to offer superior bendability and relief against port stress on active network equipment |
| Factory Terminated Reliability | Precision-molded at the factory using high-quality matching RJ45 plugs to guarantee consistent high-frequency signal transfer |
| Enterprise Safety Compliance | Ideal for indoor wiring runs and data center rack setups requiring strict adherence to building fire codes |
| GENERAL | |
|---|---|
| Packaging | Individual Factory Packaging |
| Warranty | Standard Manufacturer Warranty (Up to 30 Years System Link Warranty under certified guidelines) |
Note: The LINK US-5103LZ-1 is a 3-meter CAT 6 UTP patch cord featuring a safe LSZH white jacket and flexible stranded copper conductors. Engineered for high-speed data networks, it ensures reliable signal transmission up to 10 Gbps while meeting rigorous building safety compliance.
Important: Utilizing low-smoke zero-halogen properties alongside factory-molded plug construction, the LINK US-5103LZ-1 patch cord is ideal for professional indoor rack management, data centers, and corporate spaces requiring strict fire safety standards at a 3-meter reach.
