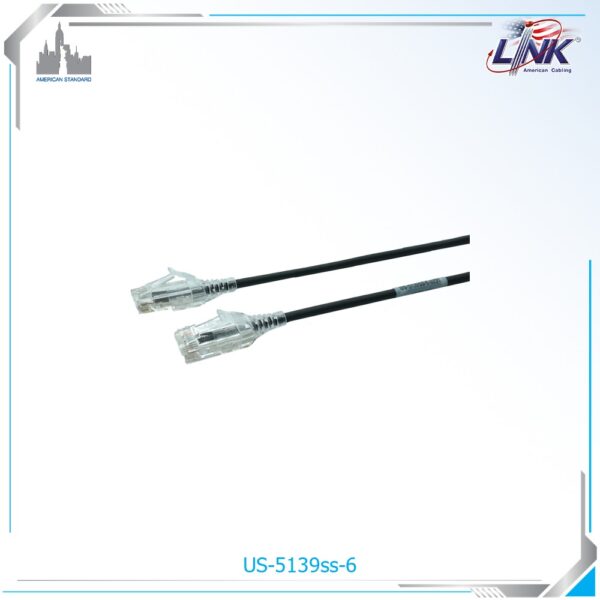

Specifications LINK US-5139SS-6
| Features | Description |
|---|---|
| Product Type | CAT 6 Small O.D Patch Cord |
| Category | CAT 6 |
| Cable Type | U/UTP (Unshielded Twisted Pair) |
| Cable Size | 28 AWG |
| Length | 0.3 m |
| Conductor | Stranded Bare Copper |
| Connector | RJ45 Modular Plug |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Color | Black |
| Design | Small Outside Diameter for easy cable management |
| Assembly | Factory-assembled and 100% tested |
| PERFORMANCE | Description |
|---|---|
| Transmission Speed | Up to 1 Gbps |
| Supported Ethernet | 2.5G/5G BASE-T, 1000 BASE-T, 1000 BASE-TX, 100 BASE-TX, and 10 BASE-T |
| ATM Support | 52/155/622 Mbps and 1.2 Gbps ATM |
| Token Ring Support | 4/16 Mbps Token Ring |
| PoE Support | IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt Type 4 |
| STANDARDS & COMPLIANCE | Description |
|---|---|
| Standards | ANSI/TIA-568.2-E, ANSI/TIA-568.2-D, ANSI/TIA-568-C.2, ISO/IEC 11801:2017 Class E, EN 50173-1 Category 6, and EN 50288-6-2 |
| Safety Standards | IEC 61156-6, IEC 60332-1, IEC 61034-1, IEC 61034-2, IEC 60754-1, IEC 60754-2, IEC 60603-7, FCC Part 68 Subpart F, and UL 1863 |
| Environmental Compliance | RoHS Compliant |
Note: The LINK US-5139SS-6 is a CAT 6 U/UTP Small O.D. 28 AWG patch cord with a 0.3-meter length and black LSZH jacket. It features factory-assembled RJ45 connectors and is designed for reliable network connections with easy cable management.
Important: The US-5139SS-6 supports 2.5G/5G BASE-T applications as well as Gigabit Ethernet and PoE applications. The LSZH jacket helps reduce toxic smoke and corrosive gas emissions during combustion.
