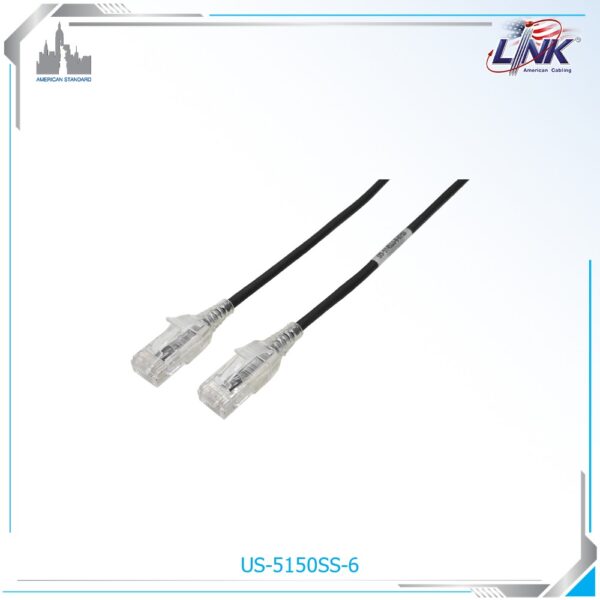

Specifications LINK US-5150SS-6
| Features | Description |
|---|---|
| Product Type | CAT 6 Small O.D. Patch Cord |
| Category | CAT 6 |
| Cable Type | U/UTP (Unshielded Twisted Pair) |
| Cable Size | 28 AWG |
| Length | 10 m |
| Conductor | Stranded Bare Copper, 4 Pairs (8 Wires) |
| Insulation Material | High-Density Polyethylene (HDPE) |
| Jacket Material | Lead-Free FR-LSZH (Low Smoke Zero Halogen) |
| Connector | RJ45 Modular Plug |
| Plug Housing | Clear Polycarbonate, UL 94V-0 |
| Pin Contact | Phosphor Bronze with 50 micro-inch Gold Plating |
| Boot | Clear PVC, Slim Model |
| Color | Black |
| PERFORMANCE | Description |
|---|---|
| Transmission Speed | Up to 10 Gbps Ethernet |
| Bandwidth | Up to 600 MHz |
| Supported Ethernet | 2.5G/5G BASE-T, 1000 BASE-T, 1000 BASE-TX, 100 BASE-TX, and 10 BASE-T |
| ATM Support | 52/155/622 Mbps and 1.2 Gbps ATM |
| Token Ring Support | 4/16 Mbps Token Ring |
| PoE Support | IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt Type 4 |
| ELECTRICAL & PHYSICAL CHARACTERISTICS | Description |
|---|---|
| Impedance | 100 ± 15 Ohms, 1 MHz to 250 MHz |
| Capacitance | 13.5 pF/ft at 1 MHz |
| Dielectric Strength | 2.5 kV/min |
| Voltage Rating | 150V AC/DC |
| Pulling Force | 50 N (11.24 lbs) minimum |
| Durability | 2,500 cycles |
| Minimum Bending Radius | 4 x Cable Diameter |
| Wiring Pattern | T568B |
| Storage Temperature | -20°C to 70°C |
| Operating Temperature | -20°C to 65°C |
| STANDARDS & COMPLIANCE | Description |
|---|---|
| Standards | ANSI/TIA-568.2-E, ANSI/TIA-568.2-D, ANSI/TIA-568-C.2, ISO/IEC 11801:2017 Class E, EN 50173-1 Category 6, and EN 50288-6-2 |
| Safety Standards | IEC 61156-6, IEC 60332-1, IEC 61034-1, IEC 61034-2, IEC 60754-1, IEC 60754-2, IEC 60603-7, FCC Part 68 Subpart F, and UL 1863 |
| Environmental Compliance | RoHS Compliant |
Note: The LINK US-5150SS-6 is a CAT 6 U/UTP Small O.D. 28 AWG patch cord with a 10-meter length and black LSZH jacket. It is designed for high-speed network connections and supports transmission speeds up to 10 Gbps with bandwidth up to 600 MHz.
Important: The US-5150SS-6 features a slim design for easy cable management and flexibility. It is factory-assembled and 100% tested for reliable performance.
