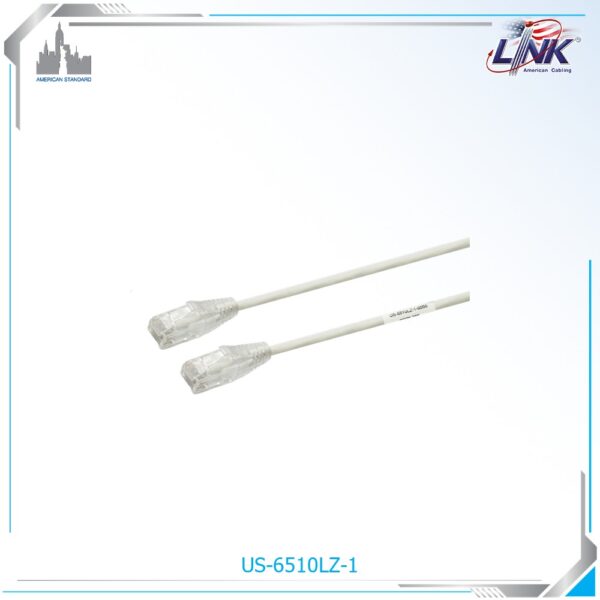

Specifications LINK US-6510LZ-1
| Features | Description |
|---|---|
| Product Type | CAT 6A UTP SUPER-S Patch Cord |
| Category | CAT 6A |
| Cable Type | UTP (Unshielded Twisted Pair) |
| Cable Size | 28 AWG |
| Length | 10 m |
| Connector | RJ45 |
| Conductor | Stranded Bare Copper, 4 Pairs (8 Wires) |
| Jacket Material | Lead-Free FR-LSZH (Low Smoke Zero Halogen) |
| Cable Diameter | 4.60 ± 0.20 mm |
| Color | White |
| Operating Temperature | -20°C to 75°C |
| Storage Temperature | -20°C to 80°C |
| PERFORMANCE | Description |
|---|---|
| Transmission Speed | Up to 10 Gbps |
| Bandwidth | Up to 500 MHz |
| Supported Ethernet | 2.5G/5G BASE-T, 10G BASE-T, 1000 BASE-T, 1000 BASE-TX, 100 BASE-TX, and 10 BASE-T |
| ATM Support | 52/155/622 Mbps and 1.2 Gbps ATM |
| Token Ring Support | 4/16 Mbps Token Ring |
| STANDARDS & COMPLIANCE | Description |
|---|---|
| Standards | ANSI/TIA-568.2-E, ANSI/TIA-568.2-D, ANSI/TIA-568-C.2, ISO/IEC 11801:2017 Class EA, EN 50173-1 Category 6A, EN 50288-11-1, and IEC 61156-6 |
| Safety Standards | IEC 60332-1, IEC 61034-1, IEC 61034-2, IEC 60754-1, IEC 60754-2, IEC 60603-7, FCC Part 68 Subpart F, and UL 1863 |
| Environmental Compliance | RoHS Compliant |
Note: The LINK US-6510LZ-1 is a CAT 6A UTP SUPER-S 28 AWG patch cord with a 10-meter length and white LSZH jacket. It is designed for high-speed network connections and supports transmission speeds up to 10 Gbps with bandwidth up to 500 MHz. It is suitable for switches, patch panels, routers, computers, and other network equipment.
Important: The US-6510LZ-1 features a slim 28 AWG design that helps save space and simplify cable management in network installations.
