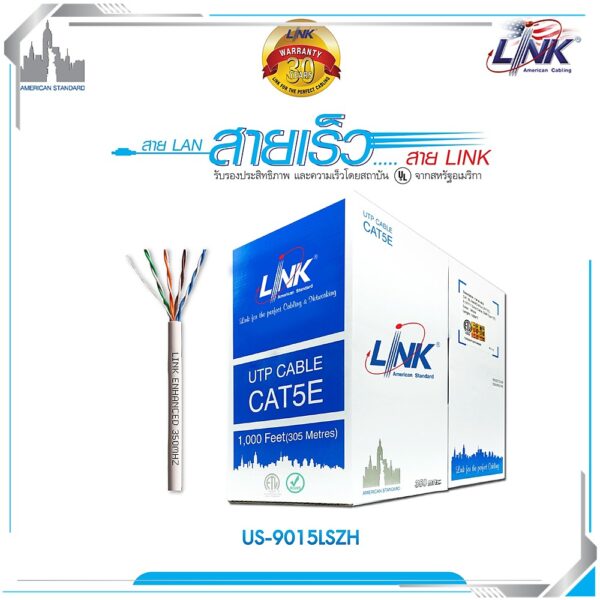

Specifications LINK US-9015LSZH
| Features | Description |
|---|---|
| Device Type | Indoor Horizontal UTP LAN Cable |
| Cable Category | CAT5e U/UTP Enhanced LSZH Cable |
| Conductor | Solid Bare Copper 24 AWG |
| Core Count | 4 Pairs (8 Wires) |
| Bandwidth | 350 MHz |
| Cable Construction | U/UTP 4-Pair Construction |
| Insulation | High Density Polyethylene (HDPE) |
| Outer Jacket | Low Smoke Zero Halogen (LSZH) White Jacket |
| Cable Length | 305 Meter / Pull Box |
| Application | Horizontal Cabling, Gigabit Ethernet, PoE, PoE+, Data, Voice, CCTV, IP Phone and Enterprise Network Infrastructure |
| Cable Standard | ANSI/TIA-568.2-E Category 5e, ISO/IEC 11801:2017 Class D |
|---|---|
| Category | Category 5e U/UTP Enhanced |
| Frequency | 350 MHz |
| Conductor Size | 24 AWG Solid Bare Copper |
| Number of Pairs | 4 Pairs (8 Conductors) |
| Cable Diameter | 5.3 ± 0.2 mm |
| Characteristic Impedance | 100 ± 15 Ohms |
| Mutual Capacitance | 5.6 nF max/100 m |
| DC Resistance | 9.38 Ohms max/100 m at 100 MHz |
| Packaging | 305 Meter Pull Box |
| SMART FEATURES | |
|---|---|
| CAT5e Enhanced Performance | Supports Gigabit Ethernet and High-Speed Network Applications with Bandwidth up to 350 MHz |
| Solid Bare Copper Conductor | 24 AWG Solid Bare Copper Conductors Provide Reliable Signal Transmission and Stable Network Performance |
| LSZH Safety | Low Smoke Zero Halogen Jacket Reduces Toxic Smoke and Corrosive Gas Emissions During Fire Conditions |
| PoE Support | Supports IEEE 802.3af PoE and IEEE 802.3at PoE+ Applications |
| Reliable Connectivity | Designed for Data, Voice, CCTV, IP Phone, PLC, Control and Structured Cabling Systems |
| GENERAL | |
|---|---|
| Cable Type | CAT5e U/UTP Enhanced Indoor LSZH LAN Cable |
| Installation Method | Indoor Horizontal Cabling Installation |
| Minimum Bend Radius | 4 × Cable Diameter |
| Installation / Operating Temperature | -20°C to +75°C |
| Storage Temperature | -20°C to +80°C |
| Propagation Delay | 536 ns/100 m at 350 MHz |
| Delay Skew | 25 ns/100 m |
| Standards Compliance | ANSI/TIA-568.2-E, ANSI/TIA-568.2-D, ANSI/TIA-568-C.2, ISO/IEC 11801:2017 Class D, EN 50173-1 Category 5e, EN 50288-3-1, IEC 61156-5, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-1, IEC 61034-2, ICEA S-90-661 Category 5e, ASTM D4566-98, NEMA WC 63.1, UL 444, CSA 22.2 No.214, 3P Verified to Category 5e, RoHS |
| Warranty | 30 Years |
Note: The LINK US-9015LSZH is a CAT5e U/UTP Enhanced indoor LAN cable featuring 24 AWG solid bare copper conductors, 4-pair construction and 350 MHz bandwidth performance. It uses a Low Smoke Zero Halogen (LSZH) white jacket designed to reduce toxic smoke and corrosive gas emissions during fire conditions, making it suitable for indoor structured cabling and high-safety network installations. The standard US-9015LSZH is supplied as a 305-meter Pull Box.
Important: The LINK US-9015LSZH supports 10/100/1000 BASE-T Gigabit Ethernet, IEEE 802.3af PoE and IEEE 802.3at PoE+ applications. Its CAT5e 350 MHz performance provides reliable transmission for data, voice, CCTV, IP Phone, PLC and enterprise network infrastructure, while the LSZH jacket improves safety for indoor installations.
