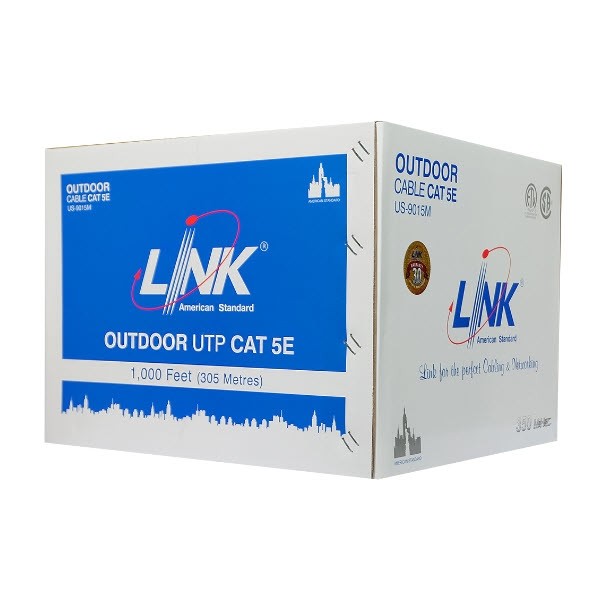

Specifications LINK US-9015M
| Features | Description |
|---|---|
| Device Type | Outdoor UTP LAN Cable with Drop Wire |
| Cable Category | CAT5E U/UTP Outdoor Cable with Drop Wire |
| Conductor | Solid Bare Copper 24 AWG |
| Core Count | 4 Pairs (8 Wires) |
| Bandwidth | 350 MHz |
| Cable Construction | U/UTP with Galvanized Steel Messenger Wire |
| Insulation | High Density Polyethylene (HDPE) |
| Drop Wire | Galvanized Steel Wire 1.30 ± 0.1 mm |
| Outer Jacket | UV-Proof PE Black Jacket |
| Cable Length | 305 Meter / Reel |
| Application | Outdoor Aerial Cabling, CCTV, IP Camera, Gigabit Ethernet, PoE, PoE+, Data and Outdoor Network Infrastructure |
| Cable Standard | ANSI/TIA-568.2-E Category 5E, ISO/IEC 11801:2017 Class D |
|---|---|
| Category | Category 5E U/UTP Outdoor |
| Frequency | 350 MHz |
| Conductor Size | 24 AWG Solid Bare Copper |
| Number of Pairs | 4 Pairs (8 Conductors) |
| Messenger Wire | Galvanized Steel Wire, 1.30 ± 0.1 mm |
| Ripcord | Installed Under Jacket |
| Cable Diameter | 5.5 ± 0.2 mm |
| Overall Diameter | 9.3 ± 0.2 mm |
| Characteristic Impedance | 100 ± 15 Ohms, 1 MHz to 350 MHz |
| Packaging | 305 Meter / Reel |
| SMART FEATURES | |
|---|---|
| CAT5E Enhanced Performance | Supports Gigabit Ethernet and High-Speed Network Applications with Bandwidth up to 350 MHz |
| Integrated Drop Wire | Galvanized Steel Messenger Wire Provides Mechanical Support for Aerial and Suspended Outdoor Cable Installation |
| UV-Proof Outdoor Jacket | Black PE Jacket Provides Protection Against UV Radiation, Moisture and Outdoor Environmental Conditions |
| Solid Bare Copper | 24 AWG Solid Bare Copper Conductors Provide Reliable Signal Transmission and Stable Network Performance |
| PoE Support | Supports IEEE 802.3af PoE and IEEE 802.3at PoE+ Applications |
| GENERAL | |
|---|---|
| Cable Type | CAT5E U/UTP Outdoor PE Cable with Drop Wire |
| Installation Method | Outdoor Aerial Installation with Messenger Wire |
| Minimum Bend Radius | 4 × Cable Diameter |
| Installation / Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +80°C |
| Flame Rating | CMX |
| Standards Compliance | ANSI/TIA-568.2-E, ANSI/TIA-568.2-D, ANSI/TIA-568-C.2, ISO/IEC 11801:2017 Class D, EN 50173-1 Category 5E, EN 50288-3-1, UL 444, NEC 800, ICEA S-90-661 Category 5E, NEMA WC 63.1, IEC 61156-5, ASTM D4566-98, IEC 60332-1, RoHS |
| Warranty | 30 Years |
Note: The LINK US-9015M is a CAT5E U/UTP outdoor LAN cable featuring 24 AWG solid bare copper conductors, 4-pair construction and 350 MHz bandwidth performance. It includes a galvanized steel messenger wire with a diameter of 1.30 ± 0.1 mm and a UV-proof PE black outer jacket, making it suitable for outdoor aerial installations without requiring a separate support wire. The standard US-9015M is supplied as a 305-meter reel.
Important: The LINK US-9015M supports 10/100/1000 BASE-T Gigabit Ethernet, IEEE 802.3af PoE and IEEE 802.3at PoE+ applications. Its CAT5E 350 MHz performance provides reliable transmission for data, voice, video, CCTV and IP camera systems, while the integrated galvanized steel drop wire provides additional mechanical support for aerial outdoor cable installations.
