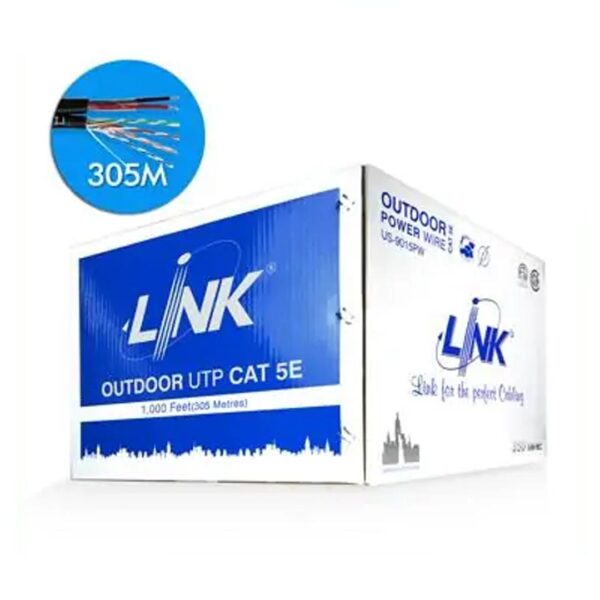

Specifications LINK US-9015PW
| Features | Description |
|---|---|
| Device Type | Outdoor UTP LAN Cable with Power Wire |
| Cable Category | CAT5E U/UTP Outdoor Cable with Power Wire |
| Conductor | Solid Bare Copper 24 AWG |
| Core Count | 4 Pairs (8 Wires) |
| Bandwidth | 350 MHz |
| Cable Construction | U/UTP with Polyester Tape and Power Wire |
| Insulation | High Density Polyethylene (HDPE) |
| Power Wire | 18 AWG Stranded Bare Copper (24 × 0.2 mm) |
| Outer Jacket | UV-Proof PE Black Jacket |
| Cable Length | 305 Meter / Reel in Box |
| Application | Outdoor Aerial Cabling, CCTV, IP Camera, Gigabit Ethernet, PoE, PoE+, Data and Outdoor Network Infrastructure |
| Cable Standard | ANSI/TIA-568.2-D Category 5E, ISO/IEC 11801:2017 Class D |
|---|---|
| Category | Category 5E U/UTP Outdoor |
| Frequency | 350 MHz |
| Conductor Size | 24 AWG Solid Bare Copper |
| Number of Pairs | 4 Pairs (8 Conductors) |
| Power Wire | 24 × 0.2 mm Stranded Bare Copper (18 AWG) |
| Ripcord | Installed Under Jacket |
| Cable Diameter | 5.4 mm |
| Overall Diameter | 11.6 mm |
| Characteristic Impedance | 100 ± 15 Ohms, 1 MHz to 350 MHz |
| Packaging | 305 Meter / Reel in Box |
| SMART FEATURES | |
|---|---|
| CAT5E Enhanced Performance | Supports Gigabit Ethernet and High-Speed Network Applications with Bandwidth up to 350 MHz |
| Built-in Power Wire | Integrated 18 AWG Stranded Bare Copper Power Wire Provides a Separate Power Connection for Outdoor Devices |
| UV-Proof Outdoor Jacket | Black PE Jacket Provides Protection Against UV Radiation, Moisture and Outdoor Environmental Conditions |
| Solid Bare Copper | 24 AWG Solid Bare Copper Conductors Provide Reliable Signal Transmission and Stable Network Performance |
| PoE Support | Supports IEEE 802.3af PoE and IEEE 802.3at PoE+ Applications |
| GENERAL | |
|---|---|
| Cable Type | CAT5E U/UTP Outdoor PE Cable with Power Wire |
| Installation Method | Outdoor Horizontal and Aerial Network Installation |
| Minimum Bend Radius | 4 × Cable Diameter |
| Installation / Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +80°C |
| Flame Rating | CMX |
| Standards Compliance | ANSI/TIA-568.2-D, ISO/IEC 11801:2017 Class D, EN 50173-1 Category 5E, ICEA S-90-661 Category 5E, EN 50288-3-1, NEMA WC 63.1, IEC 61156-5, UL444, RoHS Compliant |
| Warranty | 30 Years |
Note: The LINK US-9015PW is a CAT5E U/UTP outdoor LAN cable featuring 24 AWG solid bare copper conductors, 4-pair construction and 350 MHz bandwidth performance. It includes an integrated 18 AWG stranded bare copper power wire, allowing network data and power connections to be installed together. Its UV-proof PE black jacket provides protection for outdoor installations, and the cable is supplied in a 305-meter reel-in-box package.
Important: The LINK US-9015PW supports 2.5G BASE-T, 10/100/1000 BASE-T Gigabit Ethernet, IEEE 802.3af PoE and IEEE 802.3at PoE+ applications. It is suitable for outdoor CCTV, IP Camera, data, video, voice and network installations where a dedicated power wire is required alongside the LAN cable.
