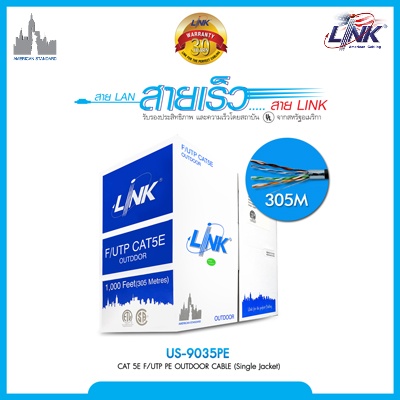

Specifications LINK US-9035PE
| Features | Description |
|---|---|
| Device Type | Outdoor Shielded LAN Cable |
| Cable Category | CAT5E F/UTP Outdoor Cable |
| Conductor | Solid Bare Copper 24 AWG |
| Core Count | 4 Pairs (8 Wires) |
| Bandwidth | 350 MHz |
| Cable Construction | F/UTP with Aluminum Mylar Shield and Drain Wire |
| Insulation | High Density Polyethylene (HDPE) |
| Shielding | Aluminum Mylar Tape with Tinned Copper Drain Wire |
| Outer Jacket | UV-Proof PE Black Jacket |
| Cable Length | 305 Meter / Pull Box |
| Application | Outdoor Horizontal Cabling, CCTV, IP Camera, Gigabit Ethernet, 2.5G BASE-T, PoE, PoE+, Data, Voice, Video and Outdoor Network Infrastructure |
| Cable Standard | ANSI/TIA-568.2-D Category 5E, ISO/IEC 11801:2017 Class D |
|---|---|
| Category | Category 5E F/UTP Outdoor |
| Frequency | 350 MHz |
| Conductor Size | 24 AWG Solid Bare Copper |
| Number of Pairs | 4 Pairs (8 Conductors) |
| Shielding | Aluminum Mylar Tape |
| Drain Wire | Tinned Copper |
| Cable Diameter | 6.1 mm |
| Characteristic Impedance | 100 ± 15 Ohms, 1 MHz to 350 MHz |
| Packaging | 305 Meter / Pull Box |
| SMART FEATURES | |
|---|---|
| CAT5E Enhanced Performance | Supports Gigabit Ethernet and High-Speed Network Applications with Bandwidth up to 350 MHz |
| F/UTP Shielding | Aluminum Mylar Shield Helps Reduce Electromagnetic Interference and External Signal Noise |
| UV-Proof Outdoor Jacket | Black PE Jacket Provides Protection Against UV Radiation, Moisture and Outdoor Environmental Conditions |
| Solid Bare Copper | 24 AWG Solid Bare Copper Conductors Provide Reliable Signal Transmission and Stable Network Performance |
| PoE Support | Supports IEEE 802.3af PoE, IEEE 802.3at PoE+ and IEEE 802.3bt Type 4 Applications |
| GENERAL | |
|---|---|
| Cable Type | CAT5E F/UTP Outdoor PE Shielded LAN Cable |
| Installation Method | Outdoor Horizontal Cabling and Outdoor Network Installation |
| Minimum Bend Radius | 4 × Cable Diameter |
| Installation / Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +80°C |
| Flame Rating | CMX |
| Standards Compliance | ANSI/TIA-568.2-D, ISO/IEC 11801:2017 Class D, EN 50173-1 Category 5E, ICEA S-90-661 Category 5E, EN 50288-2-1, NEMA WC 63.1, IEC 61156-5, ASTM D4566-98, IEC 60332-1-2, UL 444, CSA 22.2 No.214, 3P Verified to Category 5E, UL E197771, RoHS |
| Warranty | 30 Years |
Note: The LINK US-9035PE is a CAT5E F/UTP outdoor LAN cable featuring 24 AWG solid bare copper conductors, 4-pair construction, an overall Aluminum Mylar shield with tinned copper drain wire, and 350 MHz bandwidth performance. It uses a UV-proof PE black outer jacket designed to protect the cable from sunlight and outdoor environmental conditions. The cable is supplied in a 305-meter Pull Box.
Important: The LINK US-9035PE supports 10/100/1000 BASE-T Gigabit Ethernet, 2.5G BASE-T, IEEE 802.3af PoE, IEEE 802.3at PoE+ and IEEE 802.3bt Type 4 applications. Its F/UTP shielding helps reduce electromagnetic interference, while the UV-proof PE jacket makes it suitable for outdoor CCTV, IP Camera, data, voice, video and network infrastructure installations.
