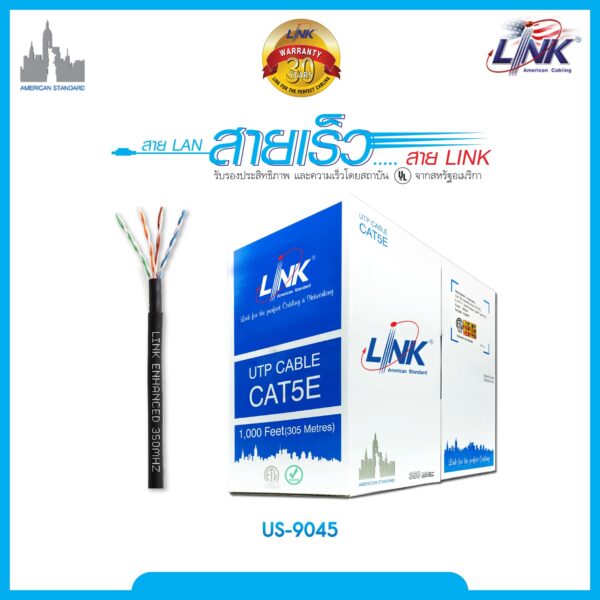

Specifications LINK US-9045
| Features | Description |
|---|---|
| Device Type | Outdoor/Indoor UTP LAN Cable |
| Cable Category | CAT5E U/UTP Outdoor Double Jacket Cable |
| Conductor | Solid Bare Copper 24 AWG |
| Core Count | 4 Pairs (8 Wires) |
| Bandwidth | 350 MHz |
| Cable Construction | U/UTP with Double Jacket Construction |
| Insulation | High Density Polyethylene (HDPE) |
| Inner Jacket | Lead-Free FR-PVC |
| Outer Jacket | UV-Proof PE Black Jacket |
| Cable Length | 305 Meter / Reelex |
| Application | Outdoor Horizontal Cabling, CCTV, IP Camera, Gigabit Ethernet, 2.5G BASE-T, PoE, PoE+, Data, Voice, Video and Network Infrastructure |
| Cable Standard | ANSI/TIA-568.2-E Category 5E, ISO/IEC 11801:2017 Class D |
|---|---|
| Category | Category 5E U/UTP Outdoor |
| Frequency | 350 MHz |
| Conductor Size | 24 AWG Solid Bare Copper |
| Number of Pairs | 4 Pairs (8 Conductors) |
| Cross Filler | FRPE Cross Filler for Pair Separation and Crosstalk Reduction |
| Cable Diameter | 6.3 mm |
| Characteristic Impedance | 100 ± 15 Ohms, 1 MHz to 350 MHz |
| Packaging | 305 Meter / Reelex |
| SMART FEATURES | |
|---|---|
| CAT5E Enhanced Performance | Supports Gigabit Ethernet and High-Speed Network Applications with Bandwidth up to 350 MHz |
| Outdoor Double Jacket | UV-Proof PE Outer Jacket Provides Protection Against Sunlight, Moisture and Outdoor Environmental Conditions |
| Solid Bare Copper | 24 AWG Solid Bare Copper Conductors Provide Reliable Signal Transmission and Stable Network Performance |
| PoE Support | Supports IEEE 802.3af PoE and IEEE 802.3at PoE+ Applications |
| Outdoor Network Ready | Designed for Outdoor CCTV, IP Camera, Gigabit Ethernet and Structured Cabling Installations |
| GENERAL | |
|---|---|
| Cable Type | CAT5E U/UTP Outdoor Double Jacket LAN Cable |
| Installation Method | Outdoor Horizontal Cabling and Indoor Installation with Outer Jacket Removed |
| Minimum Bend Radius | 4 × Cable Diameter |
| Installation / Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +80°C |
| Flame Rating | CMX |
| Standards Compliance | ANSI/TIA-568.2-E, ANSI/TIA-568.2-D, ANSI/TIA-568-C.2, ISO/IEC 11801:2017 Class D, EN 50173-1 Category 5E, EN 50288-3-1, IEC 61156-5, ICEA S-90-661 Category 5E, ASTM D4566-98, UL 444 / NEC Article 800, CSA 22.2 No.214, IEC 60332-1, RoHS |
| Warranty | 30 Years |
Note: The LINK US-9045 is a CAT5E U/UTP outdoor LAN cable featuring 24 AWG solid bare copper conductors, 4-pair construction and 350 MHz bandwidth performance. It uses a double jacket structure with a lead-free FR-PVC inner jacket and UV-proof PE black outer jacket, providing protection against sunlight and outdoor environmental conditions. The cable is supplied in a 305-meter Reelex package.
Important: The LINK US-9045 supports 10/100/1000 BASE-T Gigabit Ethernet, 2.5G BASE-T, IEEE 802.3af PoE and IEEE 802.3at PoE+ applications. Its CAT5E 350 MHz performance provides reliable transmission for data, voice, video, CCTV and IP camera systems, while the UV-resistant double-jacket construction makes it suitable for outdoor horizontal cabling.
