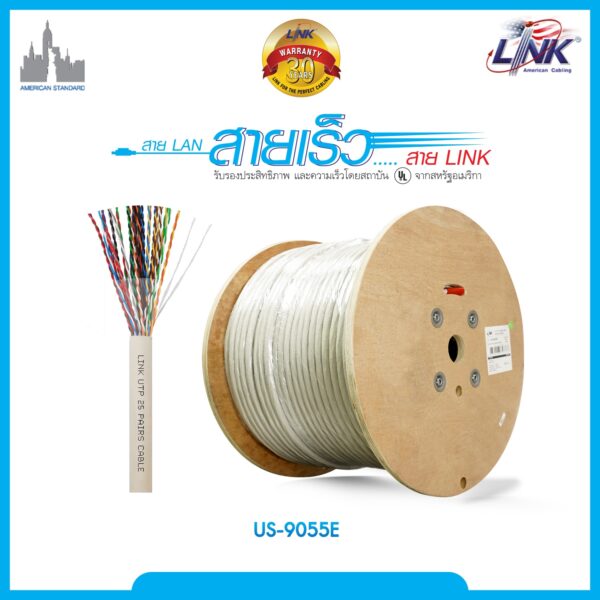

Specifications LINK US-9055E
| Features | Description |
|---|---|
| Device Type | Indoor 25-Pair Power Sum LAN Cable |
| Cable Category | CAT5E U/UTP 25 Pairs Power Sum Cable |
| Conductor | Solid Bare Copper 24 AWG |
| Core Count | 25 Pairs (50 Wires) |
| Bandwidth | 350 MHz |
| Cable Construction | U/UTP 25-Pair Construction with Polyester Tape |
| Insulation | High Density Polyethylene (HDPE) |
| Outer Jacket | FR-PVC White Jacket |
| Cable Length | 305 Meter / Reel |
| Application | Building Backbone, Inter-Floor Cabling, Network, CCTV, IP Camera, IP Phone, PLC, Data and Control Systems |
| Cable Standard | ANSI/TIA-568.2-D Category 5E, ISO/IEC 11801:2017 Class D |
|---|---|
| Category | Category 5E U/UTP 25 Pairs |
| Frequency | 350 MHz |
| Conductor Size | 24 AWG Solid Bare Copper |
| Number of Pairs | 25 Pairs (50 Conductors) |
| Mylar Type | Polyester Tape |
| Cable Diameter | Approximately 12.5 mm |
| Characteristic Impedance | 100 ± 15 Ohms |
| Packaging | 305 Meter / Reel |
| SMART FEATURES | |
|---|---|
| 25-Pair High Density Design | Provides 25 Pairs in a Single Cable for High-Density Network, Voice and Data Distribution |
| Power Sum Performance | Designed to Maintain Reliable Signal Performance Across Multiple Pairs for High-Density Cabling Applications |
| 350 MHz Bandwidth | Provides Enhanced Transmission Performance for Gigabit Ethernet and Modern Network Applications |
| Solid Bare Copper Conductor | 24 AWG Solid Bare Copper Conductors Provide Stable Signal Transmission and Reliable Network Performance |
| CMR Flame Rating | Communication Metallic Riser Jacket Provides Flame Retardant Performance for Indoor Riser Applications |
| GENERAL | |
|---|---|
| Cable Type | CAT5E U/UTP 25-Pair Indoor CMR LAN Cable |
| Installation Method | Building Backbone, Inter-Floor and Indoor Structured Cabling Installation |
| Minimum Bend Radius | 8 × Cable Diameter |
| Installation / Operating Temperature | -20°C to +60°C |
| Storage Temperature | -20°C to +80°C |
| Flame Rating | CMR (Communication Metallic Riser) |
| Standards Compliance | ANSI/TIA-568.2-D Category 5E, ISO/IEC 11801:2017 Class D, EN 50173-1 Category 5E, ICEA S-90-661 Category 5E, EN 50288-3-1, NEMA WC 63.1, IEC 61156-5, ASTM D4566-98, IEC 60332-1-2, UL Listed CMR, ETL and 3P Verified to TIA-568-C.2 CAT5E, UL E197771, RoHS |
| Warranty | 30 Years |
Note: The LINK US-9055E is a CAT5E U/UTP 25-Pair Power Sum Cable designed for high-density indoor network and telecommunications installations. It features 24 AWG solid bare copper conductors, 25 pairs, 350 MHz bandwidth, FR-PVC white jacket and CMR flame rating. The cable is supplied in a 305-meter reel and is suitable for building backbone, inter-floor cabling, CCTV, IP Camera, IP Phone, PLC, data and control systems.
Important: The LINK US-9055E supports 10/100/1000 Mbps Gigabit Ethernet as well as PoE and PoE+ applications. Its 25-pair Power Sum construction allows multiple network and communication connections to be distributed through a single high-density cable, making it suitable for backbone and riser cabling applications.
