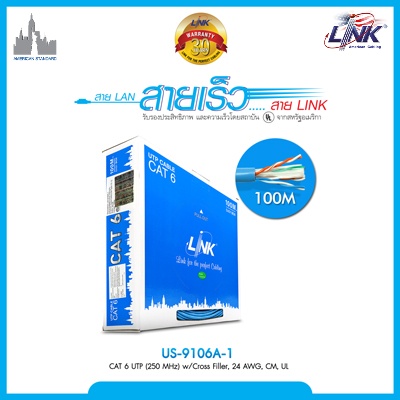

Specifications LINK US-9106A-1
| Features | Description |
|---|---|
| Device Type | Indoor UTP LAN Cable |
| Cable Category | CAT6 U/UTP Cable |
| Conductor | Solid Bare Copper 24 AWG |
| Core Count | 4 Pairs (8 Wires) |
| Bandwidth | 250 MHz |
| Cable Construction | U/UTP with Cross Filler |
| Insulation | High Density Polyethylene (HDPE) |
| Outer Jacket | CM PVC Blue Jacket |
| Cable Length | 100 Meter / Easy Box |
| Application | Horizontal Cabling, Building Backbone, Gigabit Ethernet, 2.5G/5G BASE-T, 10G BASE-T, PoE, PoE+, VoIP, CCTV and Data Networks |
| Cable Standard | ANSI/TIA-568.2-D Category 6, ISO/IEC 11801:2017 Class E |
|---|---|
| Category | Category 6 U/UTP |
| Frequency | 250 MHz |
| Conductor Size | 24 AWG Solid Bare Copper |
| Number of Pairs | 4 Pairs (8 Conductors) |
| Cross Filler | FRPE Cross Filler |
| Characteristic Impedance | 100 ± 15 Ohms |
| Cable Color | Blue |
| Flame Rating | CM |
| Packaging | 100 Meter / Easy Box |
| SMART FEATURES | |
|---|---|
| CAT6 Performance | Supports High-Speed Network Applications with Bandwidth up to 250 MHz |
| Cross Filler Design | Cross Filler Separates Cable Pairs to Improve Crosstalk Performance and Signal Stability |
| Solid Bare Copper | 24 AWG Solid Bare Copper Conductors Provide Reliable Signal Transmission and Stable Network Performance |
| Gigabit Ethernet Support | Supports 10/100/1000 BASE-T Gigabit Ethernet and 2.5G/5G BASE-T Applications |
| PoE Support | Supports IEEE 802.3af PoE, IEEE 802.3at PoE+ and IEEE 802.3bt Type 4 Applications |
| GENERAL | |
|---|---|
| Cable Type | CAT6 U/UTP Indoor PVC LAN Cable |
| Installation Method | Indoor Horizontal Cabling and Building Backbone Installation |
| Minimum Bend Radius | 4 × Cable Diameter |
| Installation / Operating Temperature | -20°C to +60°C |
| Storage Temperature | -20°C to +80°C |
| Standards Compliance | ANSI/TIA-568.2-D, ANSI/TIA-568-C.2, ISO/IEC 11801:2017 Class E, EN 50173-1 Category 6, EN 50288-6-1, IEC 61156-5, ICEA S-102-700 Category 6, UL 444, NEC Article 800, RoHS |
| Warranty | 30 Years |
Note: The LINK US-9106A-1 is a CAT6 U/UTP indoor LAN cable featuring 24 AWG solid bare copper conductors, 4-pair construction, FRPE cross filler and 250 MHz bandwidth performance. It uses a blue CM PVC outer jacket and is supplied in a 100-meter Easy Box package.
Important: The LINK US-9106A-1 supports 10/100/1000 BASE-T Gigabit Ethernet, 2.5G/5G BASE-T and limited-distance 10G BASE-T applications, together with IEEE 802.3af PoE, IEEE 802.3at PoE+ and IEEE 802.3bt Type 4. It is designed for indoor horizontal cabling, building backbone, VoIP, CCTV and data network installations.
