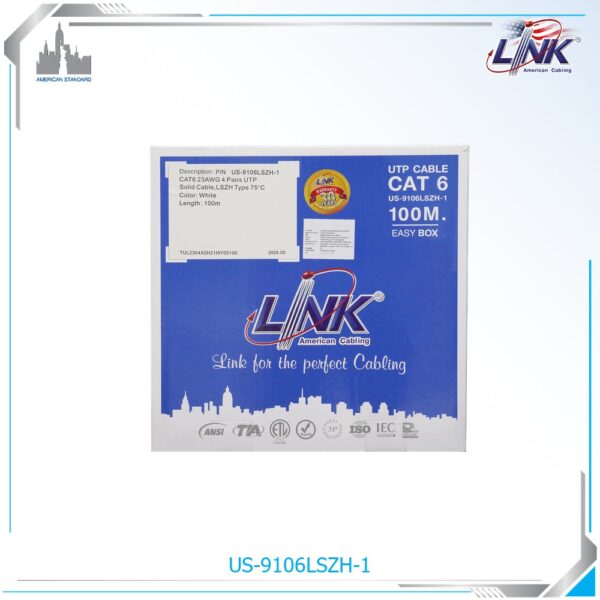

Specifications LINK US-9106LSZH-1
| Features | Description |
|---|---|
| Device Type | Indoor UTP LAN Cable |
| Cable Category | CAT6 U/UTP LSZH Cable |
| Conductor | Solid Bare Copper 23 AWG |
| Core Count | 4 Pairs (8 Wires) |
| Bandwidth | 250 MHz |
| Cable Construction | U/UTP with FRPE Cross Filler |
| Insulation | High Density Polyethylene (HDPE) |
| Outer Jacket | LSZH White Jacket |
| Cable Length | 100 Meter / Reel in Box |
| Application | Indoor Horizontal Cabling, Building Backbone, Gigabit Ethernet, 2.5G/5G BASE-T, PoE, PoE+, VoIP, CCTV and Data Networks |
| Cable Standard | ANSI/TIA-568.2-E Category 6, ISO/IEC 11801:2017 Class E |
|---|---|
| Category | Category 6 U/UTP LSZH |
| Frequency | 250 MHz |
| Conductor Size | 23 AWG Solid Bare Copper |
| Number of Pairs | 4 Pairs (8 Conductors) |
| Cross Filler | FRPE Cross Filler |
| Cable Diameter | Approximately 6 mm |
| Characteristic Impedance | 100 ± 15 Ohms |
| Cable Color | White |
| Packaging | 100 Meter / Reel in Box |
| SMART FEATURES | |
|---|---|
| CAT6 Performance | Supports High-Speed Network Applications with Bandwidth up to 250 MHz |
| LSZH Jacket | Low Smoke Zero Halogen Jacket Reduces Toxic Smoke and Corrosive Gas Emissions During Fire |
| Cross Filler Design | FRPE Cross Filler Separates Cable Pairs to Improve Crosstalk Performance and Signal Stability |
| Solid Bare Copper | 23 AWG Solid Bare Copper Conductors Provide Reliable Signal Transmission and Stable Network Performance |
| PoE Support | Supports IEEE 802.3af PoE and IEEE 802.3at PoE+ Applications |
| GENERAL | |
|---|---|
| Cable Type | CAT6 U/UTP Indoor LSZH LAN Cable |
| Installation Method | Indoor Horizontal Cabling and Building Backbone Installation |
| Minimum Bend Radius | 4 × Cable Diameter |
| Installation / Operating Temperature | -20°C to +60°C |
| Storage Temperature | -20°C to +80°C |
| Flame Rating | LSZH |
| Standards Compliance | ANSI/TIA-568.2-E, ANSI/TIA-568.2-D, ANSI/TIA-568-C.2, ISO/IEC 11801:2017 Class E, EN 50173-1 Category 6, EN 50288-6-1, IEC 61156-5, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-1, IEC 61034-2, ICEA S-102-700 Category 6, ASTM D4566-98, NEMA WC 66, UL 444, CSA 22.2 No.214, RoHS |
| Warranty | 30 Years |
Note: The LINK US-9106LSZH-1 is a CAT6 U/UTP indoor LAN cable featuring 23 AWG solid bare copper conductors, 4-pair construction, FRPE cross filler and 250 MHz bandwidth performance. It uses a Low Smoke Zero Halogen (LSZH) white outer jacket designed to reduce toxic smoke and corrosive gas emissions during fire. The cable is supplied in a 100-meter Reel in Box package.
Important: The LINK US-9106LSZH-1 supports 10/100/1000 BASE-T, 2.5G/5G BASE-T, IEEE 802.3af PoE and IEEE 802.3at PoE+ applications. Its LSZH construction makes it suitable for indoor horizontal cabling, building backbone, VoIP, CCTV and data network installations where low-smoke and halogen-free cable materials are preferred.
